Baja Rack 4Runner Ladder 5th Generation

Product Description

COMPATIBLE WITH 2020 TRD PRO 4RUNNER FACTORY RACK

This strong, steel 4Runner ladder made specifically for your 5th Gen 4Runner. Unique design made to provide roof access and maximize field of vision.

Easy, no-drill, permanent installation. Compatible with most roof rack brands. Mounts to rear door. Epoxy undercoat and black powder coat finish.

Before you install your new BajaRack ladder check the gap on top of the hatch it needs to be 5/16” to 3/8” inch, if the upper top of the ladder does not enter the gap on the hatch do not install, and check the gap clearance with a dealer or shop.

EXTREMELY IMPORTANT NOTE:

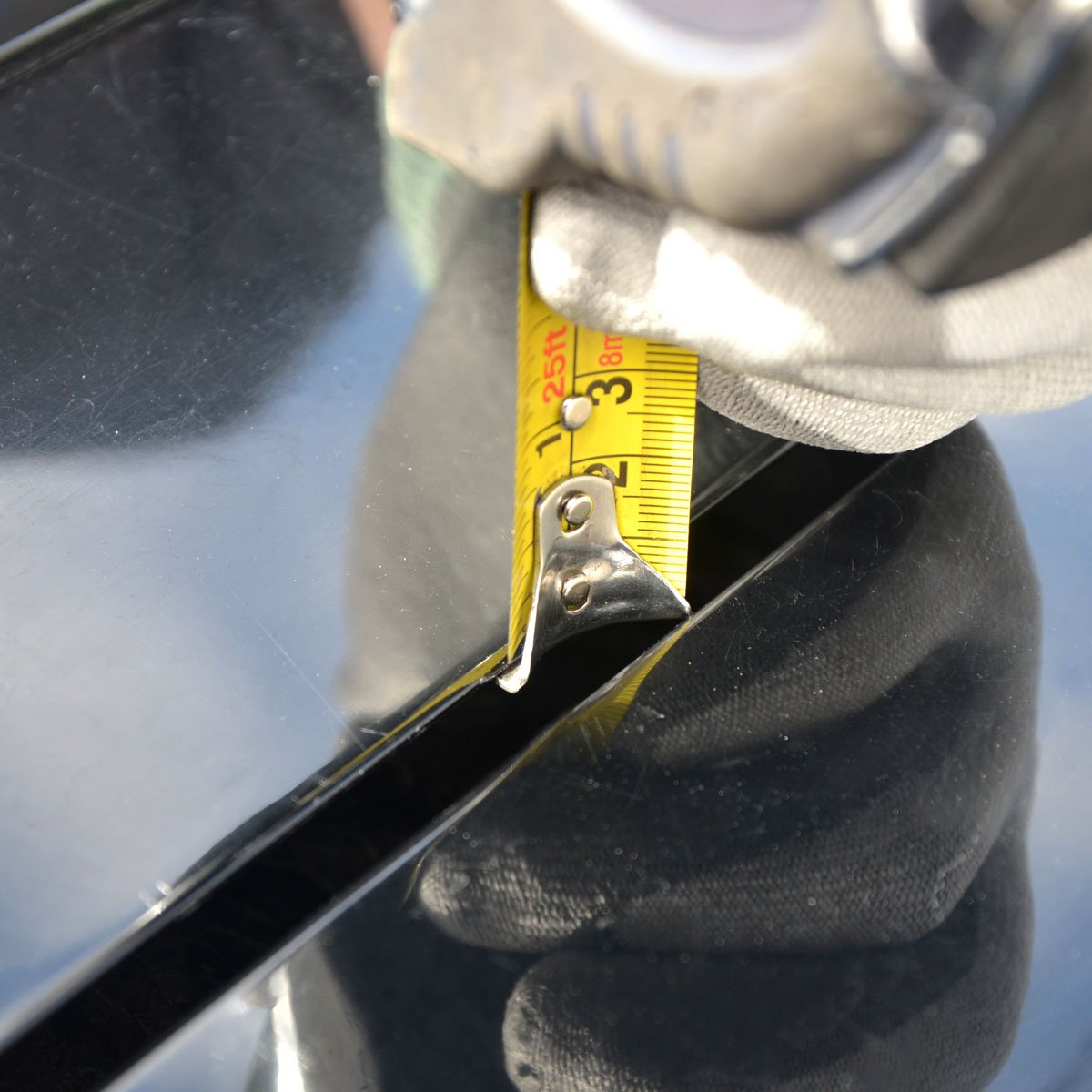

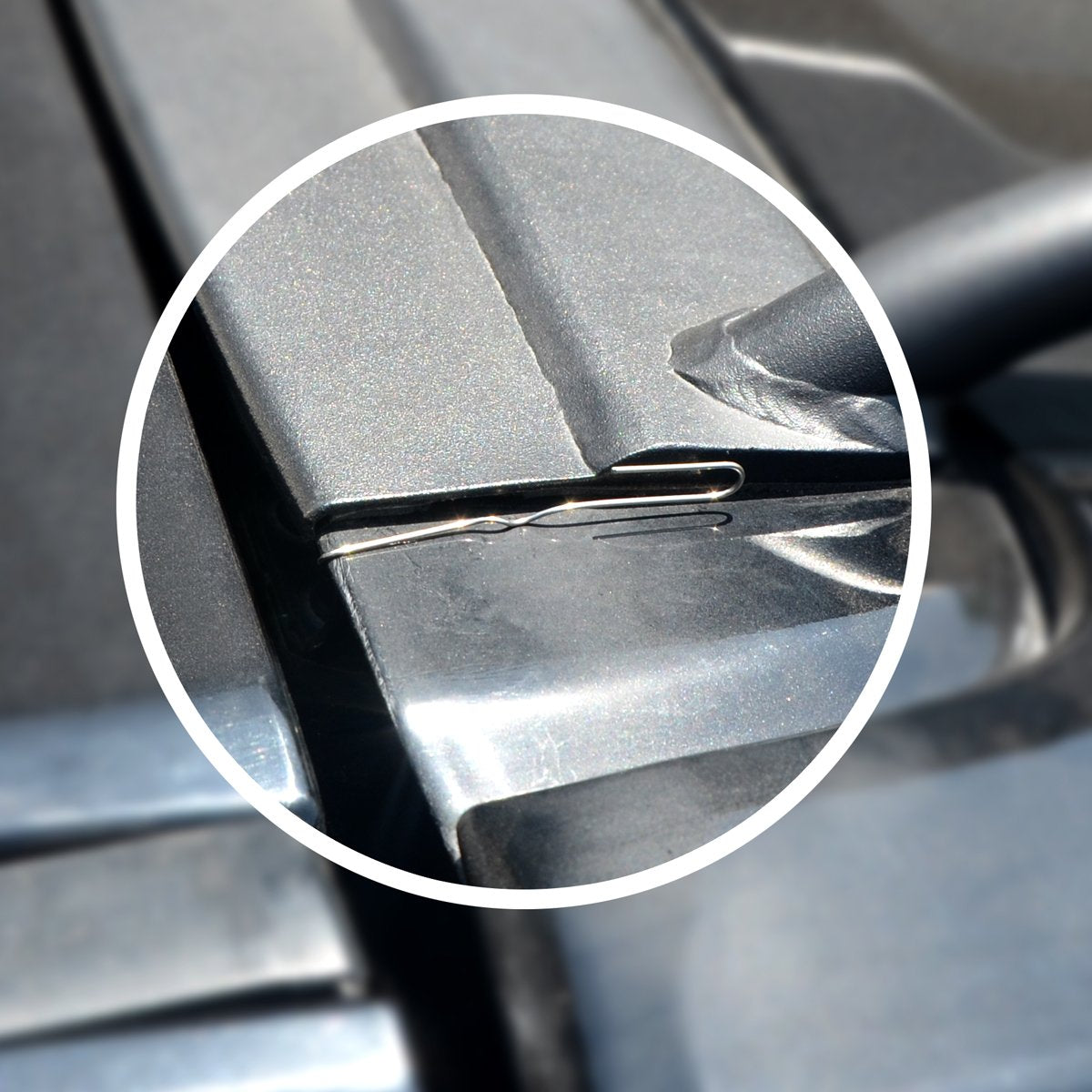

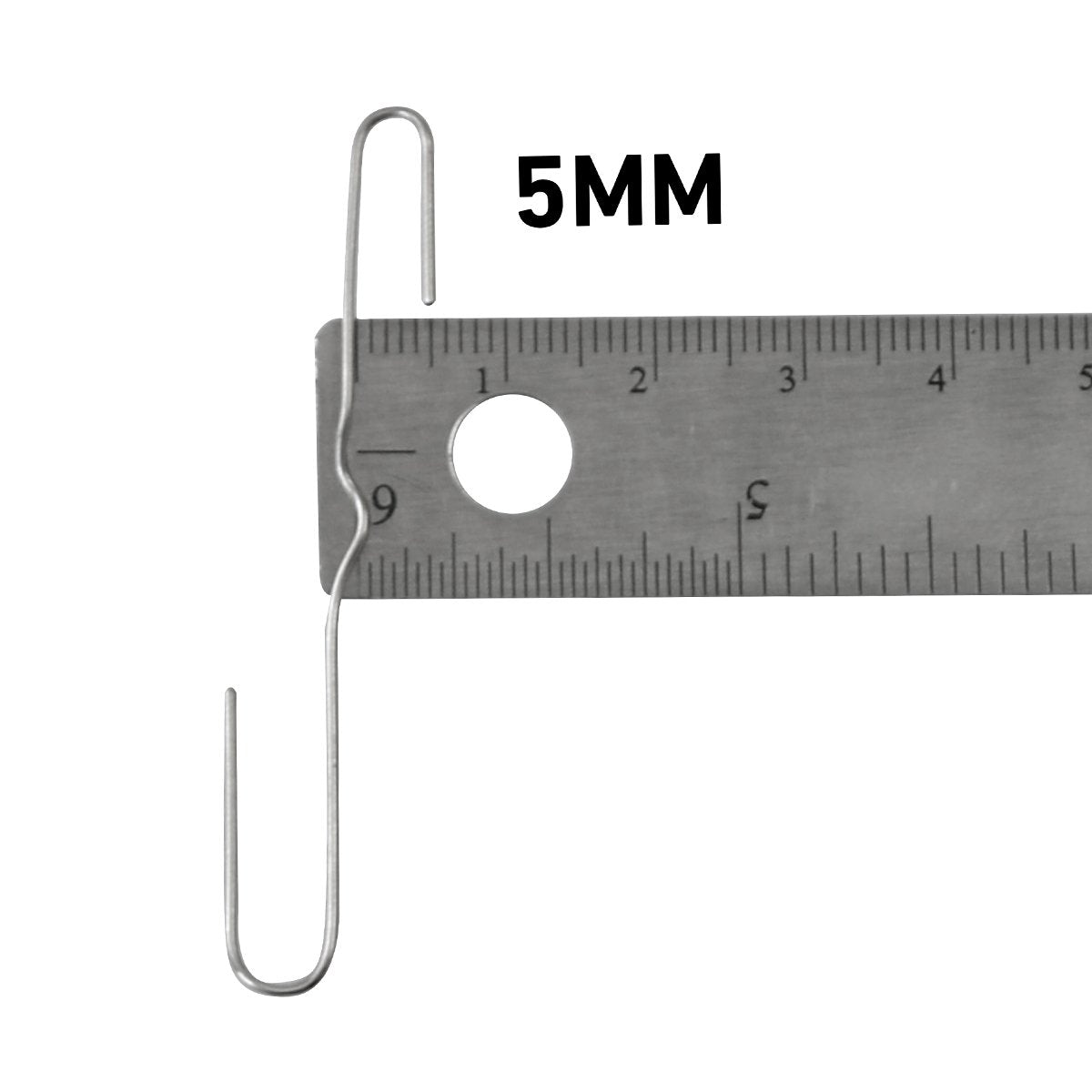

Please verify the upper (edge) of the back hatch measurement before purchasing or installing your ladder, the standard dimension is between 0.1” (2.5mm) and 0.2” (5mm) if this dimension is larger than 0.2” (5mm)  don’t install the ladder, Toyota in some models applies more sealant in this area that can cause the ladder to not fit.

NOTE: Please check the compatibility of the accessories for your rack model.

Installation Guide

Specifications

Material and Thickness: 1 Inch (25.4 mm) carbon steel tube and 1/8 Inch (3.175 mm), 3/16 Inch (4.7 mm) steel.
Finish: Epoxy primer (rust barrier) with black powder coating
Mounting Method: The Ladder install directly on the rear door. (No drilling required).
Weight Capacity: 200Lb (90.71 kg)
Ladder weight: 17 Lbs. (7.71Kg)

Warranty

This Limited Warranty covers BajaRack products and all accessories for a period of 2 years from the date of purchase to the original owner of the product and does not apply once the equipment is sold or transferred to another person.

This Warranty does not cover the cost of removal or reinstallation of the product; Nor does it cover the cost of shipping damaged or replacement parts.

Rugged Outlander and BajaRack are not liable for damage caused by shipping or transport of BajaRack products. It is the responsibility of the original retail purchaser to inspect all products prior to acceptance and to notify the shipping carrier in a timely manner so that any claim for damages can be made. If timely notification to the shipping carrier by the original retail purchaser is not made regarding damage caused during the transport of the product, a claim for damages may not be possible, and all liability falls to the original retail purchaser. This warranty does not apply if accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation, damage caused by non-BajaRack accessories, or improper service has damaged the Product.

Shipping

FREE Shipping:
We offer free shipping for orders of $200 and above.

Where do we ship?
Currently, we only ship within the 48 contiguous states. Please check back in the future as these may change.
Find more information about our shipping policy
