Dobinsons USA

RD80-1001

Dobinsons Rear Dual Roller Drawer Kit with Fridge Slide and Tie Down Points, Universal Mount, 36X40X10 Inches

Product Description

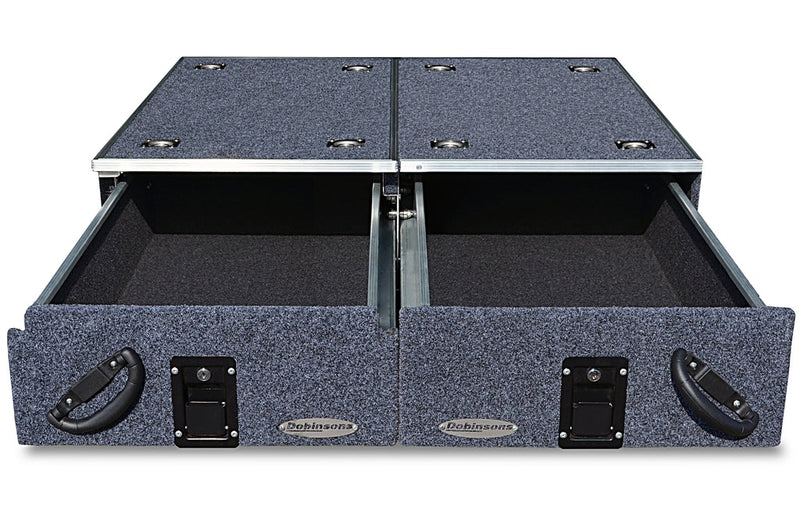

Dobinsons 4x4 offers this Rear Roller Drawer kit, whilst it will fit specific vehicles, this drawer system could also fit yours if the rear cargo area will match this size: 36" Wide, 40" deep, 10" high. This drawer system comes fully assembled, but does not include any side trim panels. Universal panels may be purchased separately.

  • Universal Mount, measures 36 x 40 x 10 inches (L, W, H), requires drilling
  • Built in Heavy Duty Fridge Slide
  • 8 x Heavy Duty Stainless Steel Tie Down Points
  • 1.6mm Zinc Plated Robust Steel Construction
  • Aluminum Edging Protection
  • Heavy duty lockable latches
  • 12mm Heavy Duty Ply Wood Panels with Marine Carpet Covering
  • 150KG (330LB) Drawer Capacity on Heavy Duty Roller Bearing System
  • 100KG (220lb) Fridge Slide Capacity

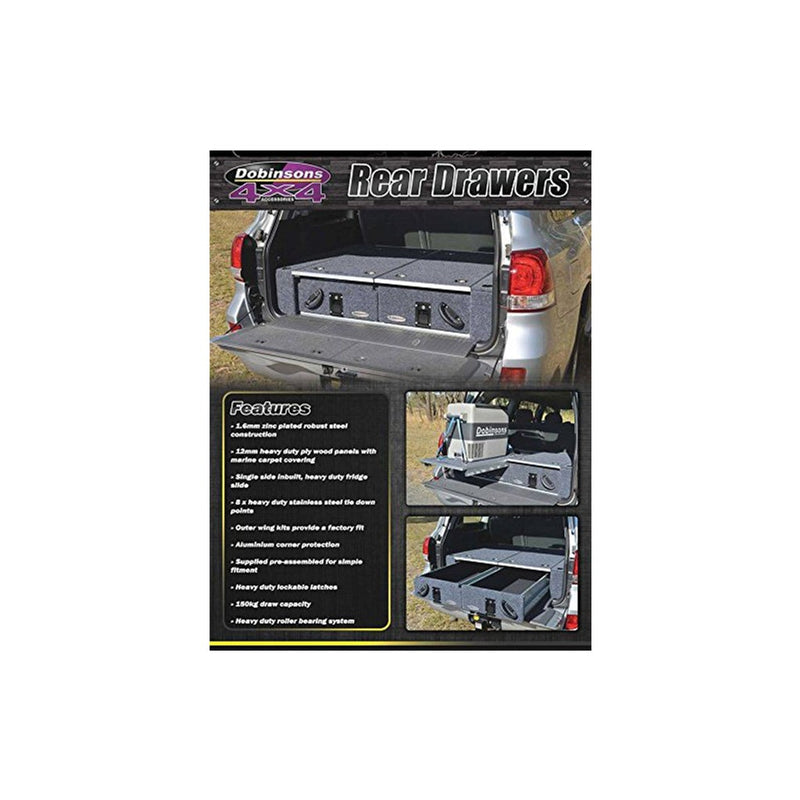

Features: 1.6mm Zinc plated robust steel construction, 12mm heavy duty plywood panels with marine carpet covering, Single side inbuilt heavy duty fridge slide, 8 x heavy duty stainless steel tie down points built in to the top of the drawers, aluminum edge protection, heavy duty lockable latches, 150KG (330LB) Draw Capacity, and heavy duty roller bearing system.
These drawers are perfect for storing your recovery gear, camping equipment, cooking gear, tools and spare parts, tow and snatch straps, or whatever you can think to carry on your adventure. Packing your equipment in these drawers alleviates the need for multiple bins/totes and allows for secure storage without having to tie everything down inside. With a built-in fridge slide on top of one of the drawers, this can save you $200+ over buying a separate fridge slide.

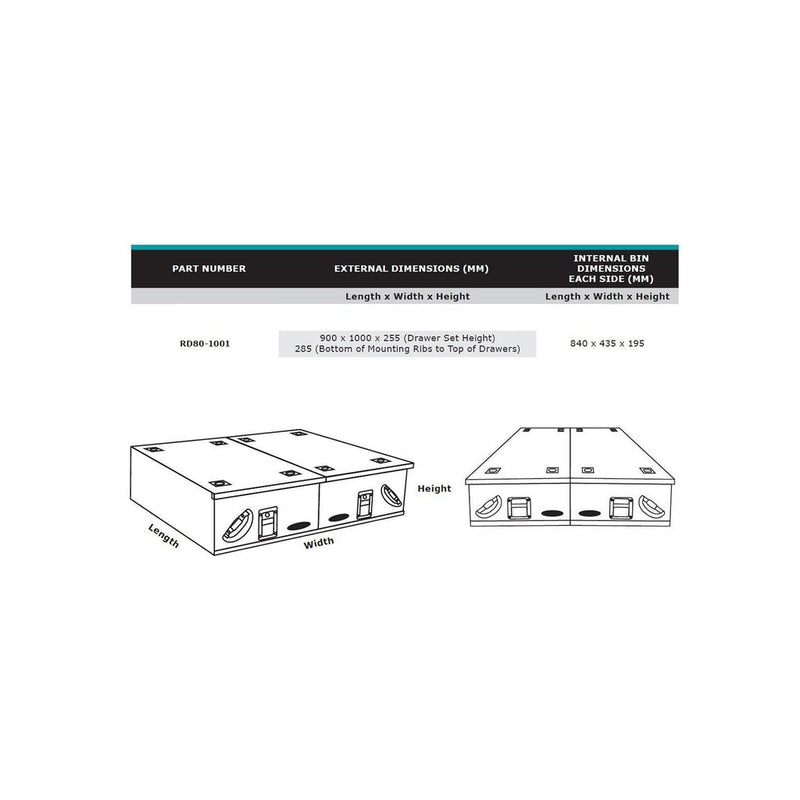

The tie down points are built in, so all you will need are some tie down straps. Drawers measure 900 x 1000 x 255mm total external, 285mm from bottom mounting ribs to top of drawers, 840 x 435 x 195mm each internal drawer dimension.
Includes: 1 x RD80-1001 Dual Drawer Kit only.
Please note the photos show the exact same drawer system installed into a Toyota Prado 150 Series. The side trim panels are not included.
This may possibly fit your full size SUV (Tahoe, Suburban, Yukon, 4Runner, etc). Drilling and bolting to your floor is necessary. Note: A special returning handling charge will be assessed if a return is necessary.

Specifications

  • Universal Mount, measures 36 x 40 x 10 inches (L, W, H), requires drilling
  • Built in Heavy Duty Fridge Slide
  • 8 x Heavy Duty Stainless Steel Tie Down Points
  • 1.6mm Zinc Plated Robust Steel Construction
  • Aluminum Edging Protection
  • Heavy duty lockable latches
  • 12mm Heavy Duty Ply Wood Panels with Marine Carpet Covering
  • 150KG (330LB) Drawer Capacity on Heavy Duty Roller Bearing System
  • 100KG (220lb) Fridge Slide Capacity
