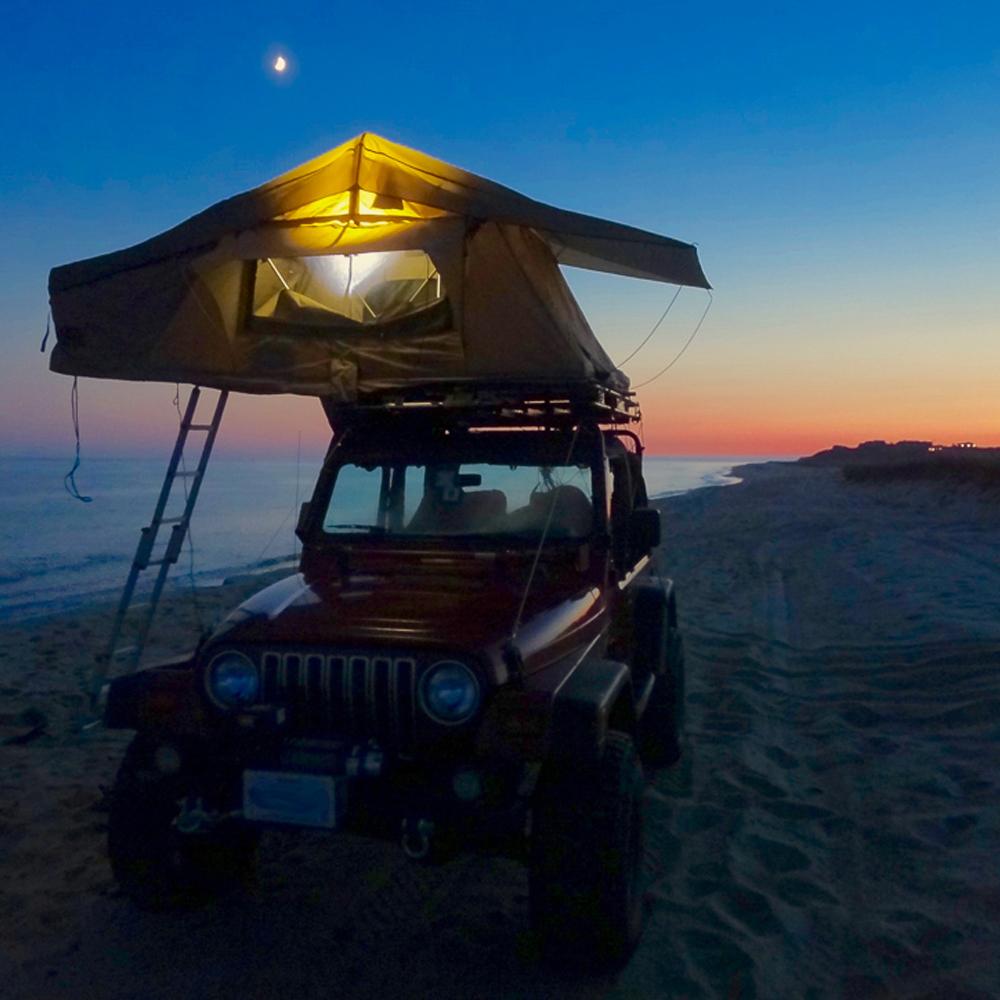

The Tuff Stuff® Ranger 65 inch roof top tent is exactly what you asked for... more room! We've added an additional 10" to the original Ranger footprint. More room for you and your family!
All bedding can be stored inside to free up valuable storage in the vehicle and includes a thick foam sleeping mat pre-installed inside. The sleeping area is large enough for 2-3 full-sized adults and a child.
The retractable ladder can also be folded away for increased space inside of the annex room.
Includes
Mounting hardware & brackets for installation (fits up to 3.25" cross bars)
Sliding ladder, 1 qty
Rainfly
PVC Cover
2.75-inch mattress

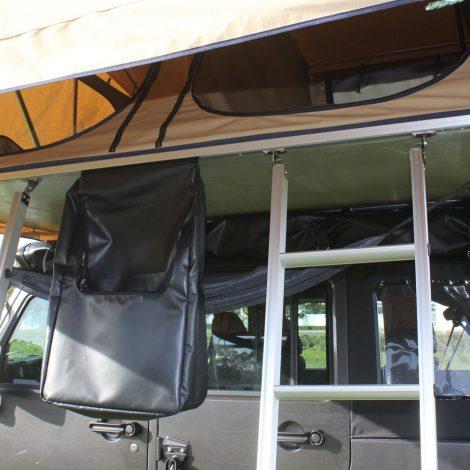

Shoe bag that slides into the tents railing for outdoor storage
Under tent storage hammock that can be mounted inside or outside of the tent
IMPORTANT Before purchasing please read the DELIVERY tab.
Instructions
INSTALLATION:
Install time is approx 1-2 hours with 2 people. Detailed instructions included.
Annex room zips on after the tent has been installed.
All necessary spikes included.

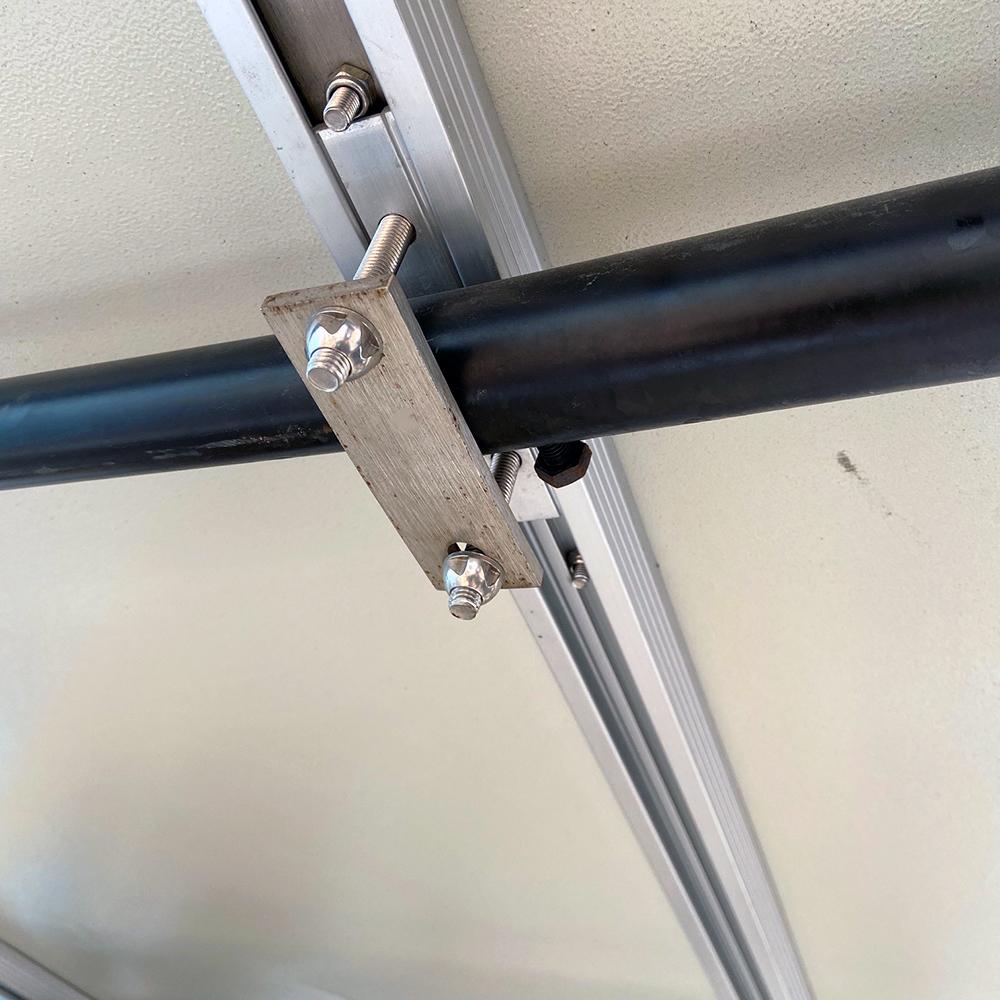

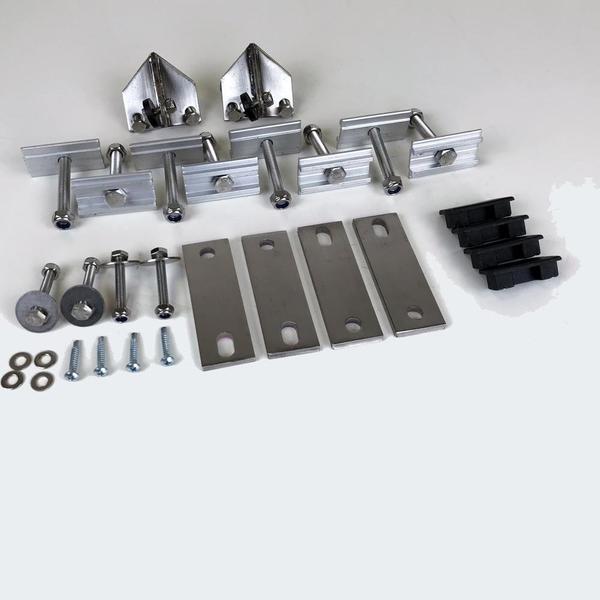

All necessary hardware included (even the tools) to mount to most all roof racks (using the custom extruded aluminum channel system).
The ideal mounting height for the tent would be 76″-78″ above the ground to allow for the ladder to extend and annex to hang to the ground.

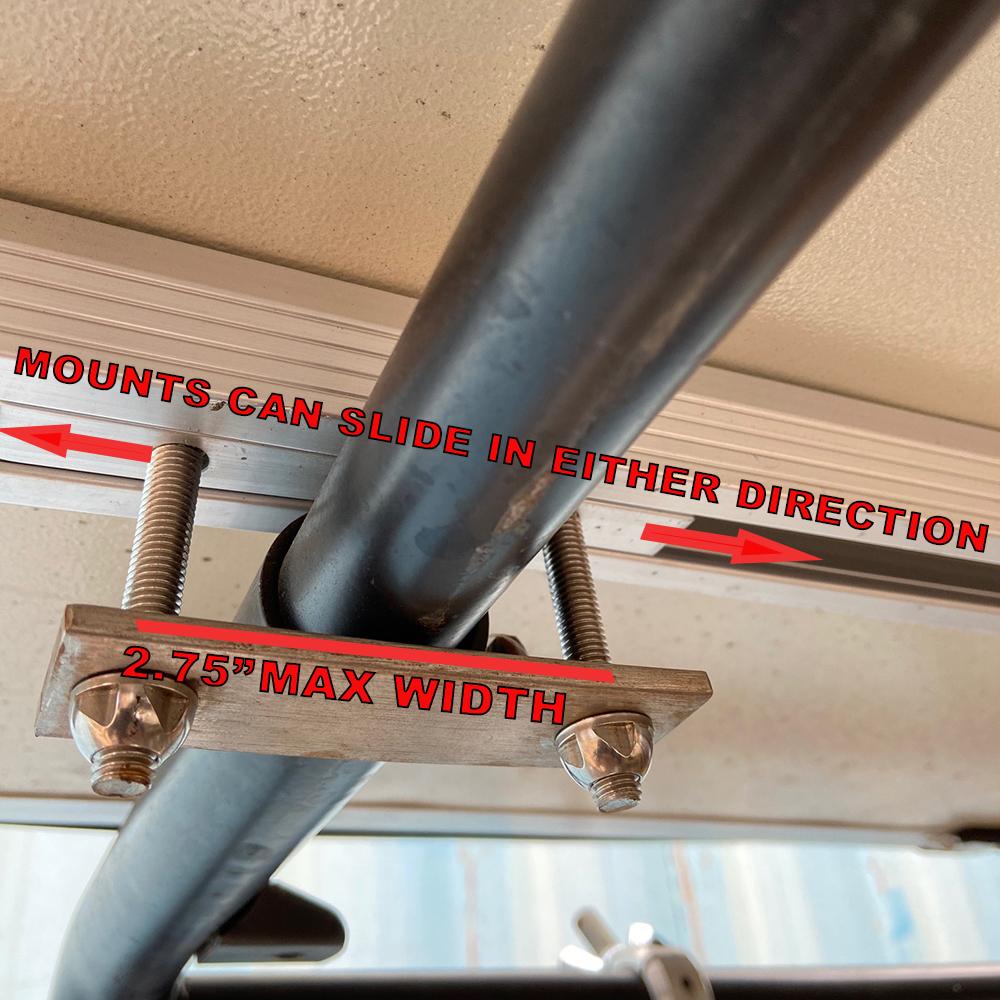

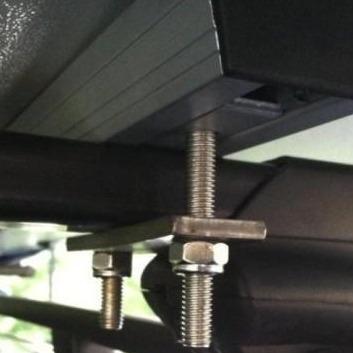

Tent mounts slide In the lower mounting rail to accommodate any crossbars (left to right on the vehicle) with a spread of up to 52". We recommend your crossbars (left to right) are no more than 45" apart for optimal support. The included lower brackets will accept up to a 3.25" wide crossbar. Max width of your crossbar should be 3.25" or less so there are no modifications needed to use the provided brackets. If your crossbars are wider than 3.25" you will need to purchase brackets from another source or have them manufactured for you.
Installation Notes:
Your vehicle must have crossbars (left to right) that can accept 150+ lbs, and your crossbars should be at least 32.5" apart for proper support.

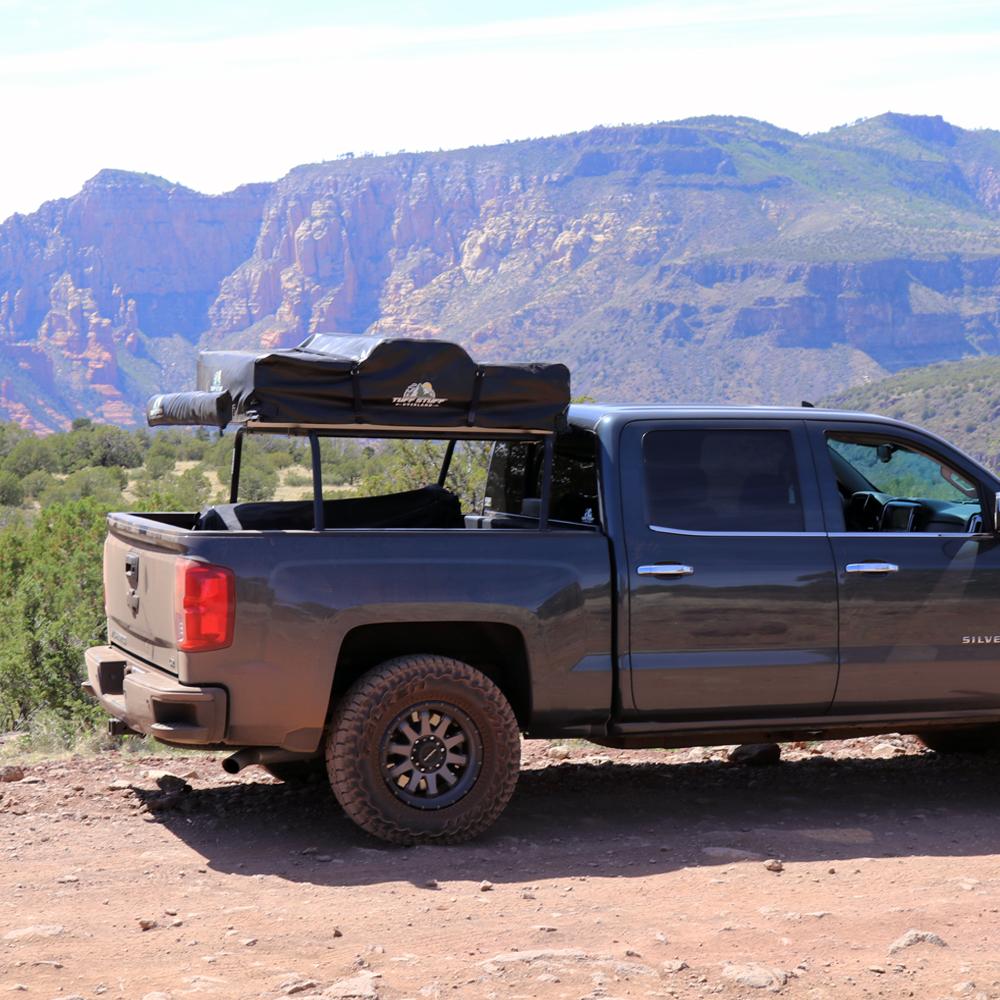

Pickup trucks: We strongly recommend the use of atruck bed rack. We do not recommend the Ranger tents be placed directly on the roof of a truck.
If fabricating your own mounting rails, wait until you receive your tent. It's the rare occasion that someone guesses the measurements right.
Installing your tent:
Opening & closing your tent:
Set up & breakdown:
Ranger tent walk around:
Specifications
Sleeping Capacity: 2-3 People
Open dimensions L/W/H: 65x96x52 inches
Open dimensions w/Overhang L/W/H: 65x132x52
Closed dimensions L/W/H: 65x48x15 inches
Mattress L/W/H: 65x92.5x 2.75
Weight: 164 Lbs
Weight Capacity: 800 Lbs
Tent Material: 280 G Poly/Cotton Rip-Stop
Rainfly Material: 420D Polyester/Oxford PU coated
Floor: Aluminum & fiberglass, 1" thickness
Zippers: YKK with custom para-cord pulls (reduces annoying dinging in wind)
Installation brackets fit crossbars up to 3.25" wide
Mounting rails: 32.5" apart
Driving Cover: Black, 1000D PVC waterproof
Ladder: Sliding (included)
Mounting hardware: Stainless steel (Included)
Warranty
Tuff Stuff® Overland provides a 1-year manufacturer’s warranty on all material, craftsmanship, and parts. This covers manufacturing defects and does not extend to normal wear and tear, cosmetic blemishes sustained during use or damage caused by improper use, improper cleaning, or improper storage. Tuff Stuff® Overland will repair or replace (with discretion) defective items at no cost to the customer.
