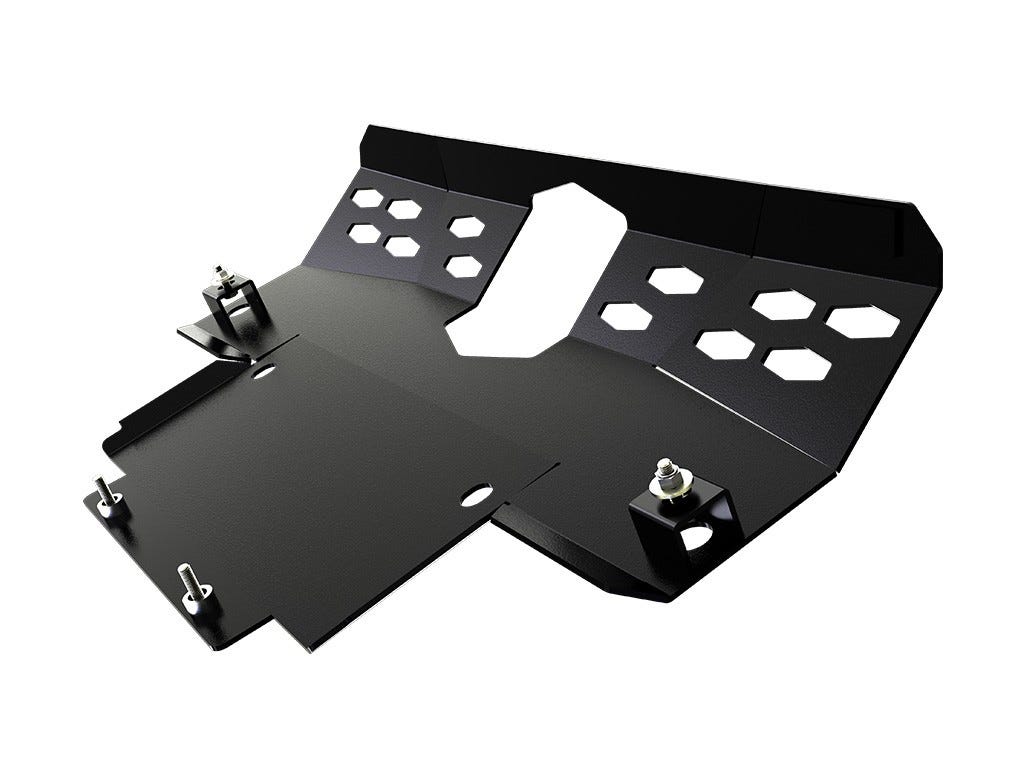

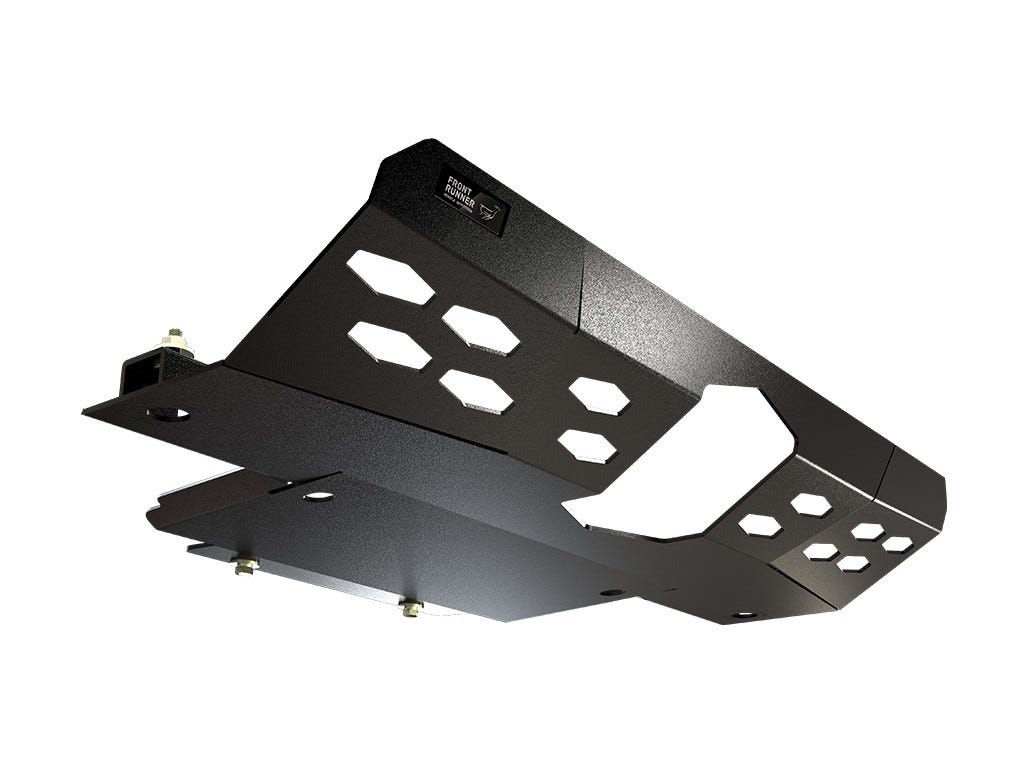

Front Runner Land Rover Discovery LR4 (2013-2017) Sump Guard

Product Description

A sump guard that mounts underneath your Land Rover Discovery and protects the engine's sump from damage.
Front Runner offers sump guards specifically designed for the make and model of each vehicle. The fact that each model has it's own specific design means that the correct parts of the vehicle are protected from damage.
This Front Runner Sump Guard is formed out of 3CR12 stainless steel and is black powder-coated for added resistance to the elements.

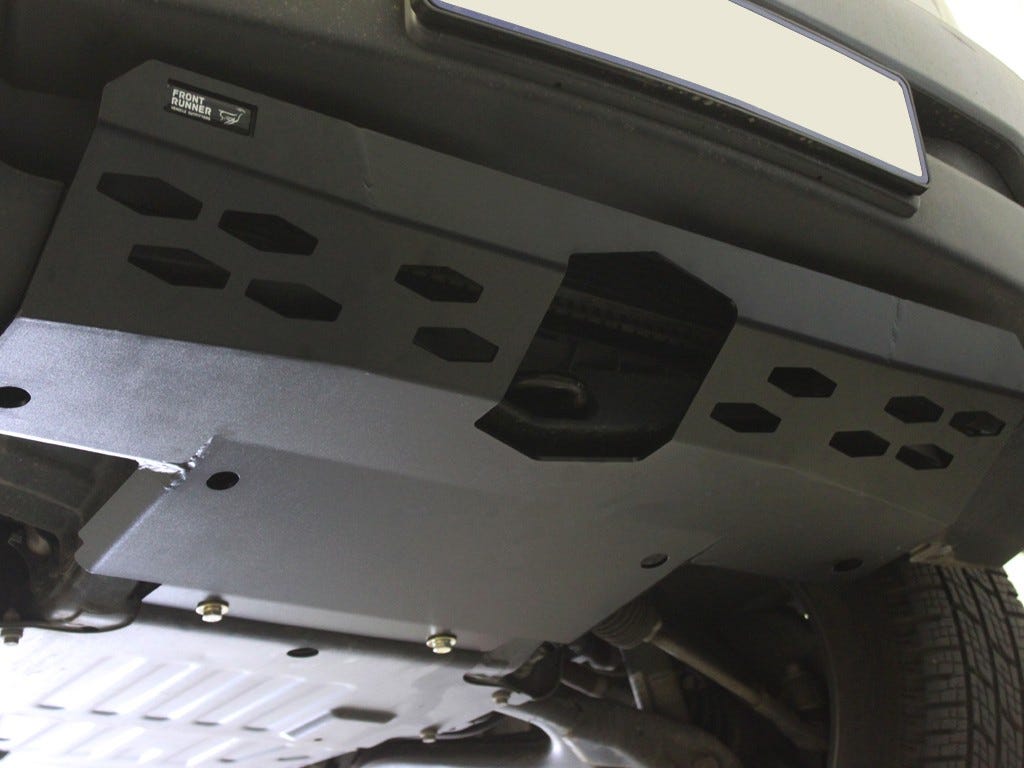

This sump guard mounts to existing mounting points which means that no drilling or modification to the vehicle is necessary for fitment, furthermore, there are cut outs around integral areas and do not hinder the functionality of the vehicle's factory fitted parts, such as the Discovery's recovery point.
Installation Instructions for SGLD009

**IMPORTANT NOTE: if you own a 2013 LR4/Defender 4 pre "Face-lift" version, you need to purchase the Land Rover Discovery LR4 (2009-2013) Sump Guard. Call if you have any questions!





      Specifications

      Consists of:
      1 x Sump Guard Plate
      2 x Aluminium Spacers
      Installation hardware
      Materials used:

      Black powder-coated 4.5mm 3CR12 stainless steel
      Aluminium
      Product Dimensions:

      950mm (37.4") W x 548mm (21.6") L x 140mm (5.5") H
      Weight:

      16.2kg (35.7lbs)

      Warranty

      All FRONT RUNNER products being returned for warranty must include a copy of the invoice for the original sale. Warranty approvals will not be granted if an original invoice or copy of an invoice is not provided,

      Subject to the limitations and exclusions described in this warranty, FRONT RUNNER will remedy defects in materials or workmanship by repairing or replacing, at its option, a defective product without charge for parts or labor. In addition, FRONT RUNNER may elect, at its option, not
      to repair or replace a defective product but rather issue to a purchaser a refund equal to the purchase price paid for the product or a credit to be used toward the purchase of a new FRONT RUNNER product.

      This warranty excludes problems caused by normal wear and tear including, but not limited to, scratches, dents, tears, or aesthetic oxidation of surfaces, natural breakdown of colors and materials over extended time and use, commercial use, accidents, or unlawful vehicle operation.

      No warranty is given for defects resulting from conditions beyond FRONT RUNNER’s and Rugged Outlander’s control including, but not limited to, modifications or repairs not performed or authorized by FRONT RUNNER, misuse, overloading, or failure to assemble, install or use the product in accordance with FRONT RUNNER’s written instructions or guidelines included with the product or made available to the purchaser originally.

      ROOF RACKS (LIMITED LIFETIME)

      FRONT RUNNER will warranty all FRONT RUNNER Roof Racks for a LIFETIME of use by the original purchaser. The warranty will only stand if the FRONT RUNNER Roof Racks are fitted to a FRONT RUNNER Mounting System. The Roof Rack Kits must be installed in accordance with Front Runner's recommended fitment instructions. The Lifetime Warranty is effective for as long as the original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person. The components used in customized Roof Rack installations are considered accessories and are covered under the accessories warranty below.

      ROOF RACK ACCESSORIES & MOUNTING SYSTEMS (3 YEARS)

      FRONT RUNNER will warranty all FRONT RUNNER brand Roof Rack Accessories and Rack Mounting Systems manufactured by FRONT RUNNER for the first 3 years that an original retail purchaser owns the product. The Warranty will only stand if the accessories are fitted to a Front Runner Roof Rack. This warranty terminates if a purchaser transfers the product to any other person or if the accessories are fitted to any rack other than a FRONT RUNNER Roof Rack.

      OTHER FRONT RUNNER MANUFACTURED (2 YEARS)

      FRONT RUNNER will warranty all FRONT RUNNER brand fuel tanks, bumpers, tow bars, drawers and sliders manufactured by FRONT RUNNER for the first 2 years that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

      ROOF TOP TENTS & AWNINGS (2 YEARS)

      FRONT RUNNER will warranty all FRONT RUNNER roof top tents and awnings for the first 2 years that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

      FRONT RUNNER BRANDED OTHER (1 Year)

      FRONT RUNNER will warranty all other FRONT RUNNER branded items, not limited to but including, Expander Chairs, Cutlery, Storage Bags, Transit Bags, Flip Flop Tent, Telescopic Ladder for the first 1 year that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

      OTHER

      FRONT RUNNER also sells products that complement the Front Runner product range. When those products are purchased from or through a Front Runner Reseller, FRONT RUNNER will honor ALL ORIGINAL MANUFACTURERS WARRANTIES.

      DISCLAIMER OF LIABILITY

      REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT OR THE ISSUANCE OF A REFUND OR CREDIT (AS DETERMINED BY FRONT RUNNER OUTFITTERS) IS A PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY. DAMAGE TO A PURCHASER’S VEHICLE, CARGO, AND/OR TO ANY OTHER
      PERSON OR PROPERTY IS EXCLUDED.

      THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

      FRONT RUNNER OUTFITTERS ’ SOLE LIABILITY TO ANY PURCHASER IS LIMITED TO THE REMEDY SET FORTH ABOVE. IN NO EVENT WILL FRONT RUNNER OUTFITTERS BE LIABLE FOR ANY LOST PROFITS, LOST SALES, OR FOR ANY CONSEQUENTIAL, DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
      EXEMPLARY, OR PUNITIVE DAMAGES OR FOR ANY OTHER DAMAGES OF ANY KIND OR NATURE.

      In some countries, product liability legislation may give you other rights beyond the scope of this warranty. Where this applies, such rights shall replace the rights and conditions stated in this warranty.
