Front Runner Outfitters

RRAC112

Front Runner Rotopax Side and Top Mount Kit

Product Description

Mount RotoPax Fuel, Water or Emergency/Storage Packs to the side or top of a Front Runner Slimline II Rack with this off-road tough Mounting Plate and adjustable tilt Side Mount Brackets. Rotopax brand Pack Mounts (RX-PM, RX-DLX-PM and RX-LOX-PM) must be used in conjunction and are SOLD SEPARATELY.

  • Free up rack space and mount fuel and water to the side or top of a Slimline II Rack.
  • The 3CR12 stainless steel Mounting Plate can hold either one (1) 15L/4 gallon or two (2) 7.5L/2 gallon RotoPax Fuel, Water or Emergency/Storage Packs on the top of the rack or using the Side Mount Brackets, off the side of the rack.

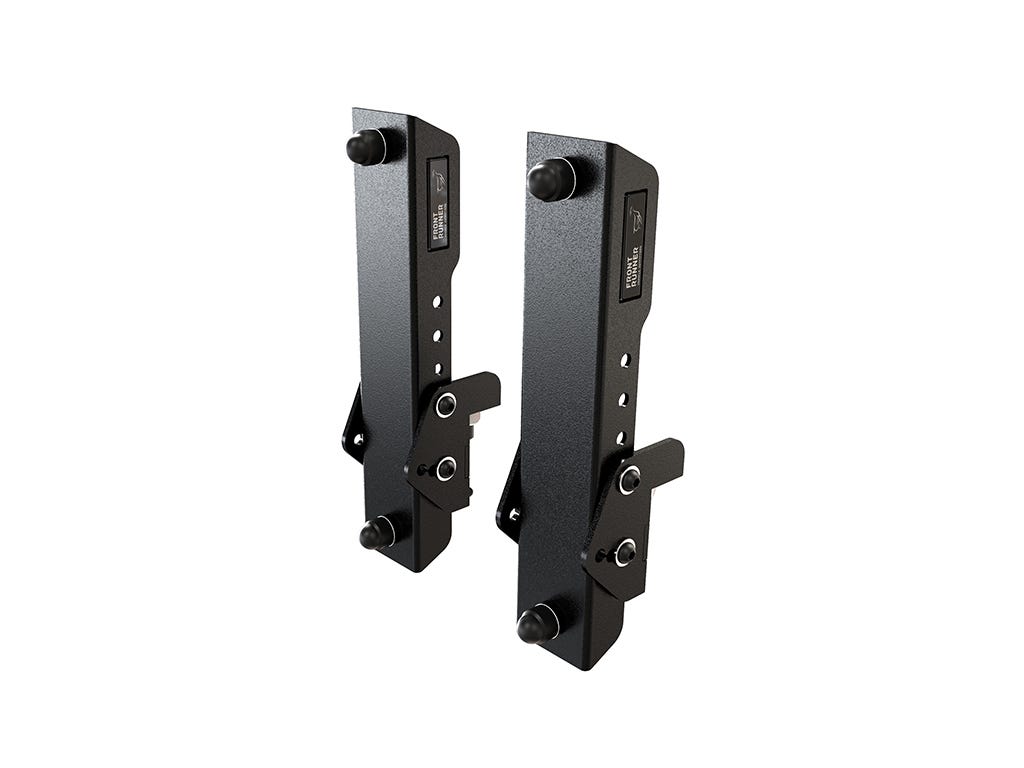

  • The Side Mount Brackets hold the Mounting Plate and are height (50mm/1.96")) and tilt (12.5 degree increments up to 25 degrees) adjustable.

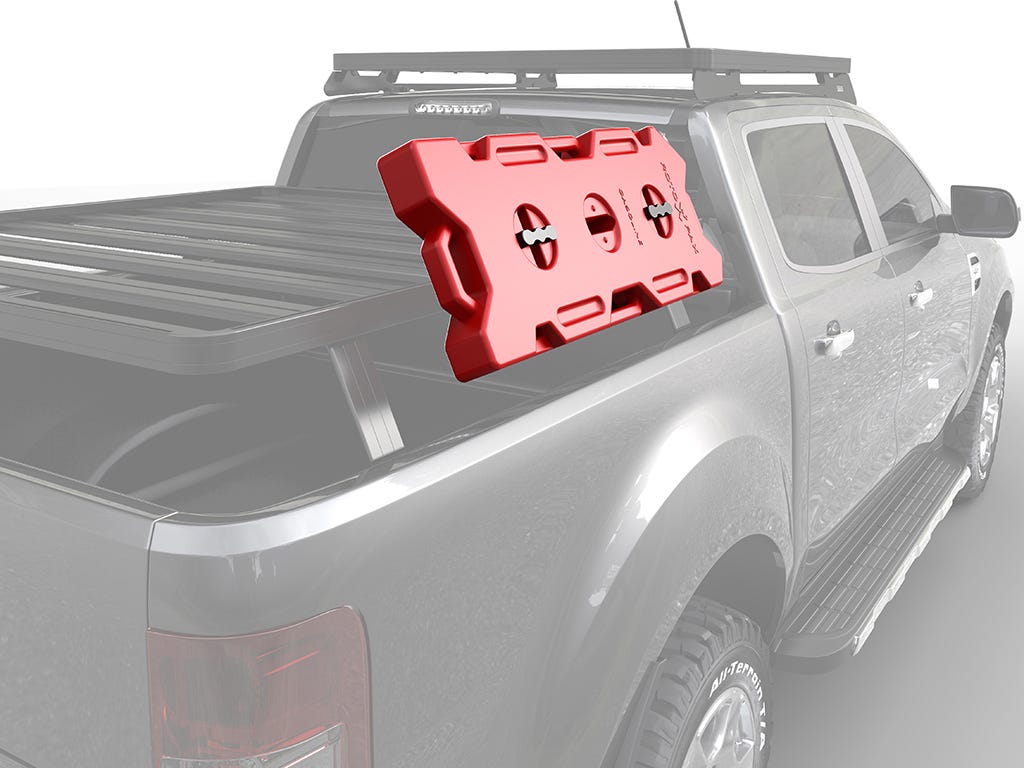

  • Allows for RotoPax Packs to be positioned to suit the vehicle profile and rack contents. Also allows the RotoPax Packs to be slanted when fitted to the side of a Front Runner load bed rack, so as not to protrude excessively from the vehicle.

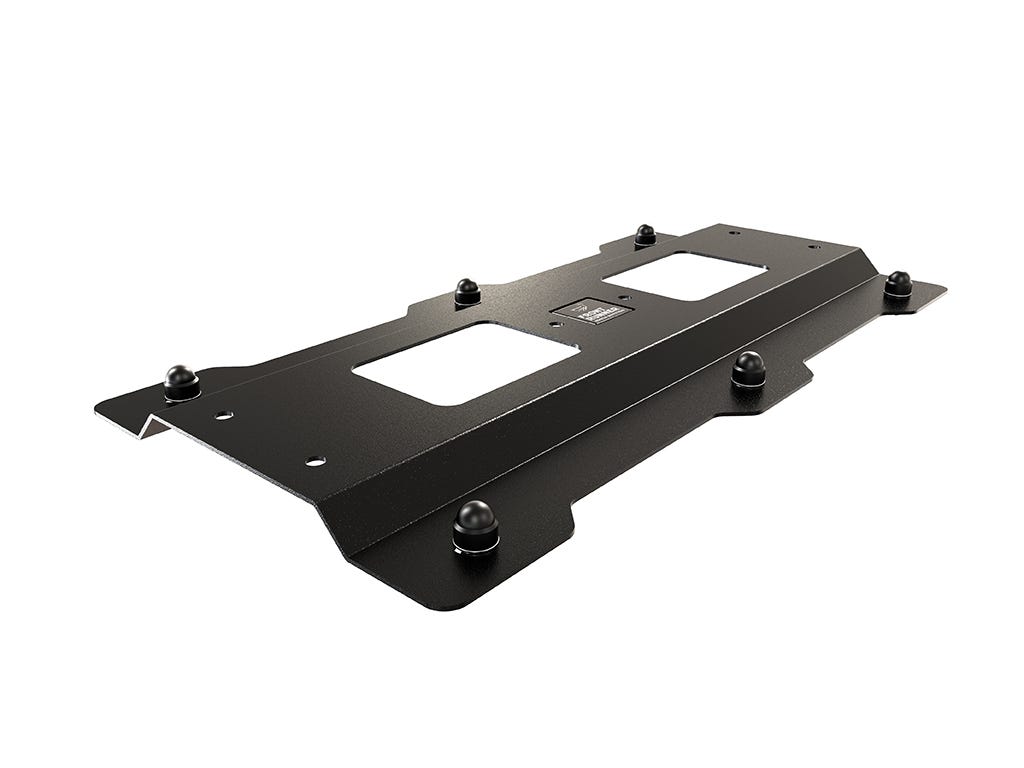

  • Rotopax Rack Tray Mounting Plate measures in at 480mm (18.9") L x 250mm (9.8") W x 20mm (0.8") H, weighs 1,58kg (3.5lbs).
  • Both the Side Mounting Plate and Side Mount Brackets are finished in the same durable, weather resistant black powder coating as the Slimline II Rack.
  • Installation hardware and fitting instructions included.

PLEASE NOTE: RotoPax Pack Mounts (RX-PM, RX-DLX-PM and RX-LOX-PM) must be used to secure RotoPax to the Front Runner Rotopax Side Mount. The RotoPax brand Pack Mounts are SOLD SEPARATELY.

Installation Instructions for RRAC106







                                Specifications

                                Consists of:
                                1 x RotoPax Mounting Plate (RRAC105)
                                1 x Pair of RotoPax Side Mount Brackets
                                Installation Hardware
                                Fitting Instructions

                                Materials used:
                                Black powder coated 3CR12 stainless steel

                                Product Dimensions:
                                97mm (3.8") L x 480mm (18.9") W x 243mm (9.6") H

                                Weight:
                                2.88kg (6.4lbs)

                                Warranty

                                All FRONT RUNNER products being returned for warranty must include a copy of the invoice for the original sale. Warranty approvals will not be granted if an original invoice or copy of an invoice is not provided,

                                Subject to the limitations and exclusions described in this warranty, FRONT RUNNER will remedy defects in materials or workmanship by repairing or replacing, at its option, a defective product without charge for parts or labor. In addition, FRONT RUNNER may elect, at its option, not
                                to repair or replace a defective product but rather issue to a purchaser a refund equal to the purchase price paid for the product or a credit to be used toward the purchase of a new FRONT RUNNER product.

                                This warranty excludes problems caused by normal wear and tear including, but not limited to, scratches, dents, tears, or aesthetic oxidation of surfaces, natural breakdown of colors and materials over extended time and use, commercial use, accidents, or unlawful vehicle operation.

                                No warranty is given for defects resulting from conditions beyond FRONT RUNNER’s and Rugged Outlander’s control including, but not limited to, modifications or repairs not performed or authorized by FRONT RUNNER, misuse, overloading, or failure to assemble, install or use the product in accordance with FRONT RUNNER’s written instructions or guidelines included with the product or made available to the purchaser originally.

                                ROOF RACKS (LIMITED LIFETIME)

                                FRONT RUNNER will warranty all FRONT RUNNER Roof Racks for a LIFETIME of use by the original purchaser. The warranty will only stand if the FRONT RUNNER Roof Racks are fitted to a FRONT RUNNER Mounting System. The Roof Rack Kits must be installed in accordance with Front Runner's recommended fitment instructions. The Lifetime Warranty is effective for as long as the original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person. The components used in customized Roof Rack installations are considered accessories and are covered under the accessories warranty below.

                                ROOF RACK ACCESSORIES & MOUNTING SYSTEMS (3 YEARS)

                                FRONT RUNNER will warranty all FRONT RUNNER brand Roof Rack Accessories and Rack Mounting Systems manufactured by FRONT RUNNER for the first 3 years that an original retail purchaser owns the product. The Warranty will only stand if the accessories are fitted to a Front Runner Roof Rack. This warranty terminates if a purchaser transfers the product to any other person or if the accessories are fitted to any rack other than a FRONT RUNNER Roof Rack.

                                OTHER FRONT RUNNER MANUFACTURED (2 YEARS)

                                FRONT RUNNER will warranty all FRONT RUNNER brand fuel tanks, bumpers, tow bars, drawers and sliders manufactured by FRONT RUNNER for the first 2 years that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

                                ROOF TOP TENTS & AWNINGS (2 YEARS)

                                FRONT RUNNER will warranty all FRONT RUNNER roof top tents and awnings for the first 2 years that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

                                FRONT RUNNER BRANDED OTHER (1 Year)

                                FRONT RUNNER will warranty all other FRONT RUNNER branded items, not limited to but including, Expander Chairs, Cutlery, Storage Bags, Transit Bags, Flip Flop Tent, Telescopic Ladder for the first 1 year that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

                                OTHER

                                FRONT RUNNER also sells products that complement the Front Runner product range. When those products are purchased from or through a Front Runner Reseller, FRONT RUNNER will honor ALL ORIGINAL MANUFACTURERS WARRANTIES.

                                DISCLAIMER OF LIABILITY

                                REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT OR THE ISSUANCE OF A REFUND OR CREDIT (AS DETERMINED BY FRONT RUNNER OUTFITTERS) IS A PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY. DAMAGE TO A PURCHASER’S VEHICLE, CARGO, AND/OR TO ANY OTHER
                                PERSON OR PROPERTY IS EXCLUDED.

                                THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

                                FRONT RUNNER OUTFITTERS ’ SOLE LIABILITY TO ANY PURCHASER IS LIMITED TO THE REMEDY SET FORTH ABOVE. IN NO EVENT WILL FRONT RUNNER OUTFITTERS BE LIABLE FOR ANY LOST PROFITS, LOST SALES, OR FOR ANY CONSEQUENTIAL, DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
                                EXEMPLARY, OR PUNITIVE DAMAGES OR FOR ANY OTHER DAMAGES OF ANY KIND OR NATURE.

                                In some countries, product liability legislation may give you other rights beyond the scope of this warranty. Where this applies, such rights shall replace the rights and conditions stated in this warranty.
