Baja Rack

BR-LR34-EXP-0

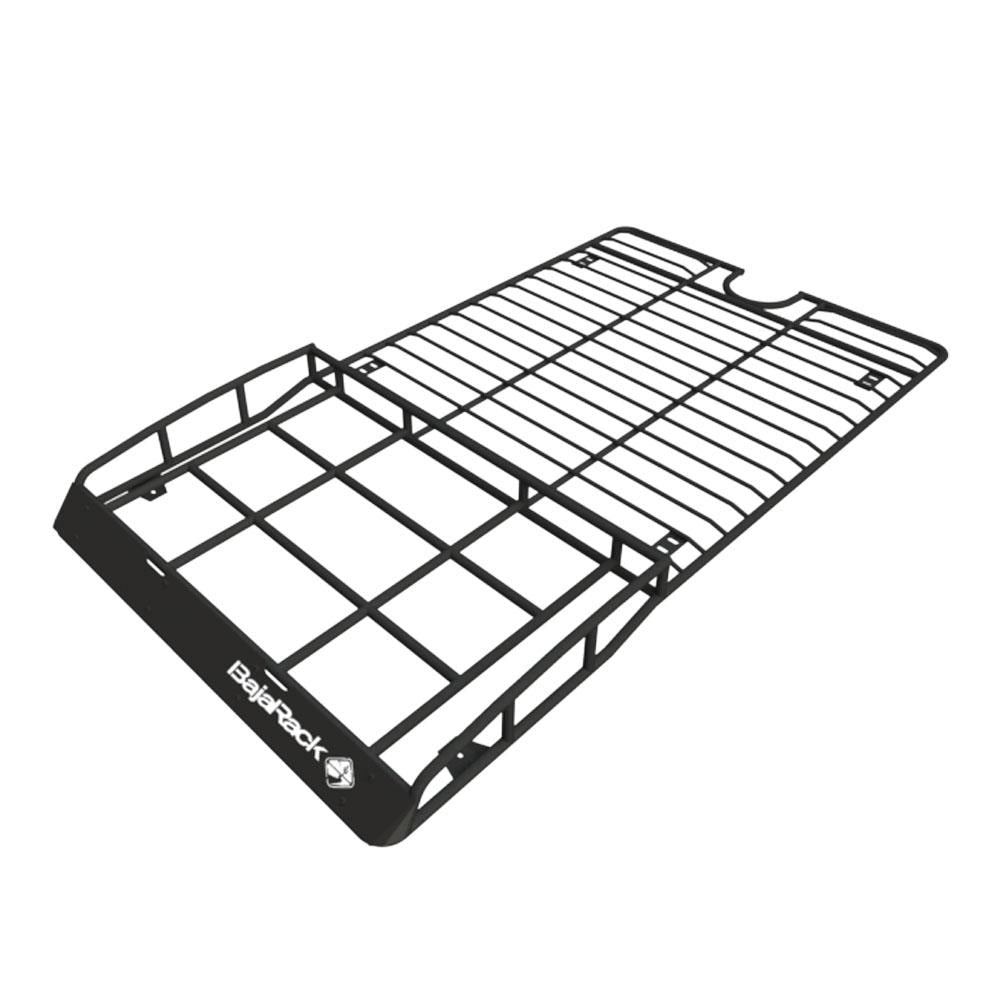

Baja Rack LR3 & LR4 Expedition Rack (20" front basket and rear flat section) (2005-2016)

Product Description

This rack has a flat area for a Roof Top Tent and a small basket for essential gear and fuel in the front, the design of this roof rack follows the contours of the Land Rover III (LR3) & IV (LR4) making the vehicle looks tough and ready for any adventure. Includes handy front basket and a cutout in the rear of the rack to accommodate the satellite antenna.

To install this rack, two hidden factory mounting points in front above the cab are used, and our slide brackets fit into the rear/short factory rails.

Installation Guide

    Specifications

    Each rack includes all mounting brackets, stainless steel hardware, and aluminum wind deflector.

    Material and Thickness:
    1” (25.4mm), ¾” (19.05mm) and 1/2’”(12.7mm) Steel tubing
    Wind Deflector:.062” (1.57mm), 5050-H32 Aluminum
    Finish: Epoxy primer (rust inhibitor) with black powder coating
    Rack weight: 90 Lb (40.9Kg).
    Load Capacity: Dynamic (while driving) 300Lb (136 kg); Static 600Lb (272 kg)
    Measurements outside Frame: 50”(1270 mm) Wide x 92” (2336.8 mm) Long x 5” (127mm) tall
    Flat area for Roof Top Tent: 50”(1270 mm) Wide x 56.50” (1435.1 mm) Long
    Total Height (Top of roof to top of rack): 8.75"
    Cargo area: 19.96ft² (1.85m²)
    Mounting method: 2 front adjustable brackets and 4 rear brackets that mount on the short rear factory rails.
