Front Runner Outfitters

SSAM005

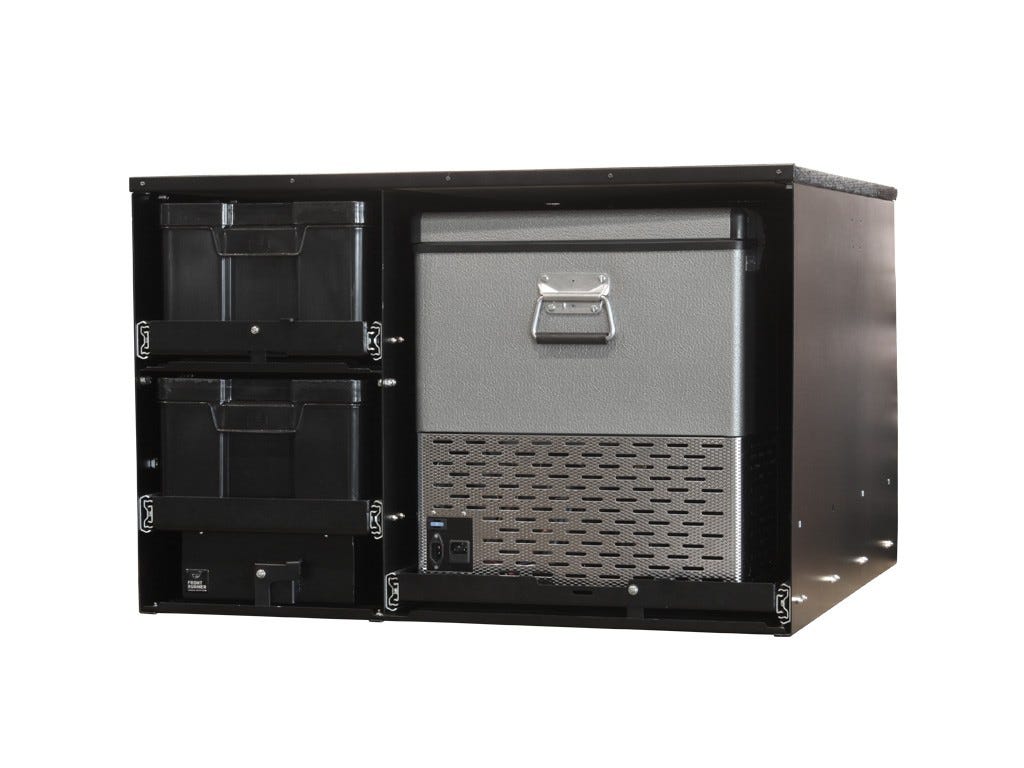

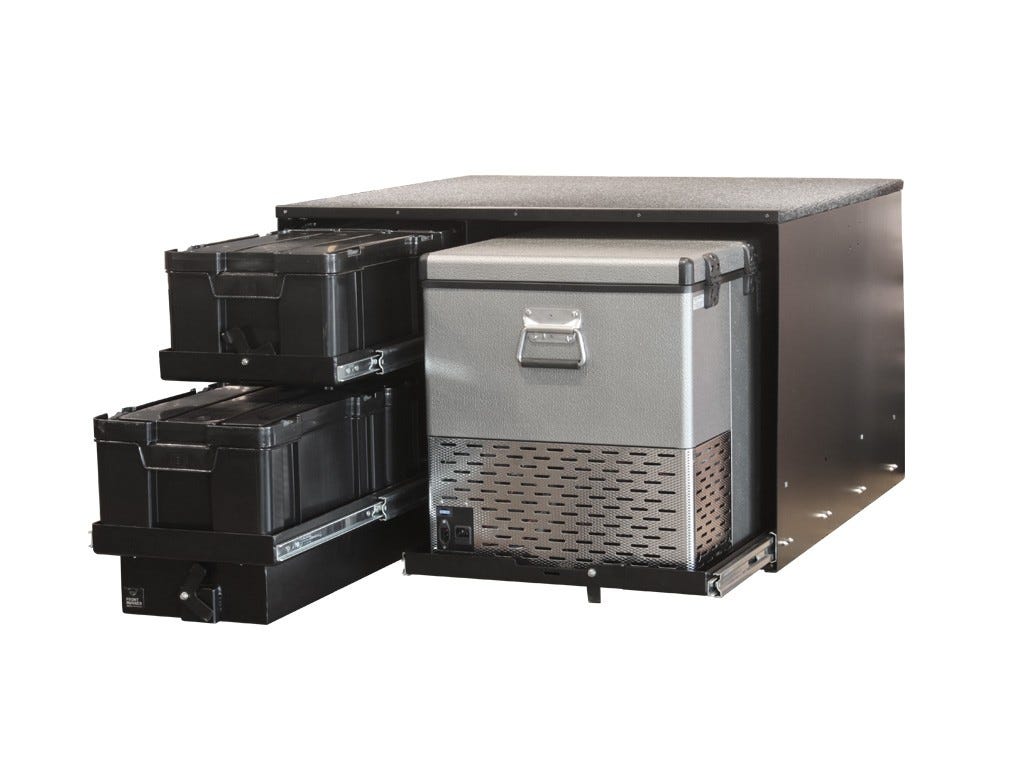

FRONT RUNNER 4 CUB BOX DRAWER & FRIDGE SLIDE COMBO

Product Description

This 4 Cub Pack & Fridge Slide Combo drawer system provides a comprehensive and practical storage solution. Easily transport stored items between a vehicle and the campsite, garage, store, etc. including easy access to coolers, fridges, gear boxes and more. Engineered tough for both on and off-road conditions.
Product Dimensions: 944mm (37.2") L x 935mm (36.8") W x 618mm (24.3") H

If Front Runner doesn’t offer a vehicle specific drawer kit for your make and model vehicle, consider this “universal” drawer. Since these drawers will only fit into appropriately sized vehicles, please see SPECS for exact product measurements.

  • This 4 Cub Pack & Fridge Slide drawer kit includes 2 drawer slides with 1 small storage tray, 1 fridge slide tray, rotating latch mechanism and detailed fitment instructions.
  • Cub Pack, the heart of this modular storage system, are perfectly sized for kitchen support, dried goods, tools, camera gear, toiletries, even cloths.
  • These latch-to-close, stackable and durable Cub Pack storage containers are made from black, high strength plastic and have integrated grips for easy carrying.
  • Strap “spare” Cub Pack to the drawer deck or secure them to a Front Runner Slimline II Rack.
  • High-strength bearing slides allows each drawer and Fridge Slide to extend nearly 100% from the anchored base.
  • The Fridge Slide extends at the lower level to accommodate various size fridges from 40L to 80L.
  • The small storage tray in the bottom left hand drawer allows you to store additional items.
  • 113kg/ 250 lb per drawer load carrying capacity.
  • The flat deck allows you stack 150kg / 331 lb of gear across the surface.
  • Fitted with a latching mechanism, all drawers and slide are kept in place when in the closed position.
  • Customize your own storage configurations. Stack and secure luggage, Wolf Pack, Cub Pack, aluminum boxes and other storage containers to the top deck slide using Stratchits or other straps as well as Cargo Rail / 1150mm and Black Tie Down Rings / Eye Nuts.
  • The deck is lined with a durable, UV resistant nylon pile carpet detailed to compliment each vehicle’s interior contours.
  • The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
  • Finished with the same durable black powder coating as the Front Runner Slimline II Rack.
  • This Front Runner 4 Cub Pack Drawer & Fridge Slide Combo can be easily installed.
  • Depending on your vehicle’s make and model drilling may be required.
  • All Front Runner Storage Systems are backed by a 2 year warranty.

Note: These “universal” drawers do not come with a vehicle specific deck completion set or faceplates.

If you have any questions about whether or not this product will fit your vehicle, please contact Front Runner before purchase.

Installation Instructions for SSAM005

Installation Instructions for SSDS901

*Please Note: Cub Packs are not included when purchasing this Drawer System and are sold separately.

      Specifications

      Consists of:
      1 x Drawer unit
      Fitting instructions

      Materials used:
      Black powder coated mild steel - Drawer unit
      Nylon Carpet & Laminated Plywood - Top Deck

      Product Dimensions:
      944mm (37.2") L x 935mm (36.8") W x 618mm (24.3") H

      Interior Drawer Dimensions:
      Left Hand Top Drawer:
      877mm (34.5") L x 317mm (12.5") W x 46mm (1.8") H

      Left Hand Bottom Drawer (with Storage Tray):
      828mm (32.6") L x 258mm (10.2") W x 149mm (5.9") H

      Fridge Slide:
      882mm (34.7") L x 519mm (20.4") W x 37mm (1.5") H

      Weight:
      96.16kg (212lbs)

      Load Rating:
      113kg (250lbs) per drawer and fridge slide
      150kg (331lbs) Distributed over the Top Deck

      Special Notes:
      The Drawer system has 3 different sized storage compartments all with rotating latches to secure drawers in place.
