Product Description

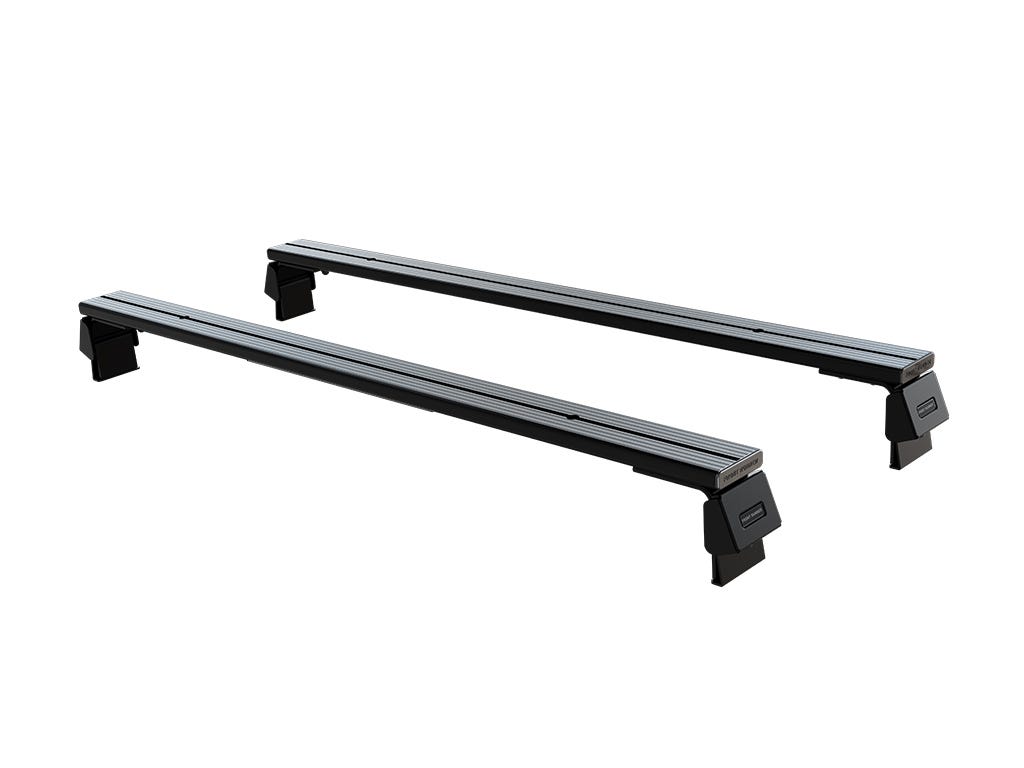

A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 120mm Gutter Mount legs, 2 1345mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.
You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.
Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.

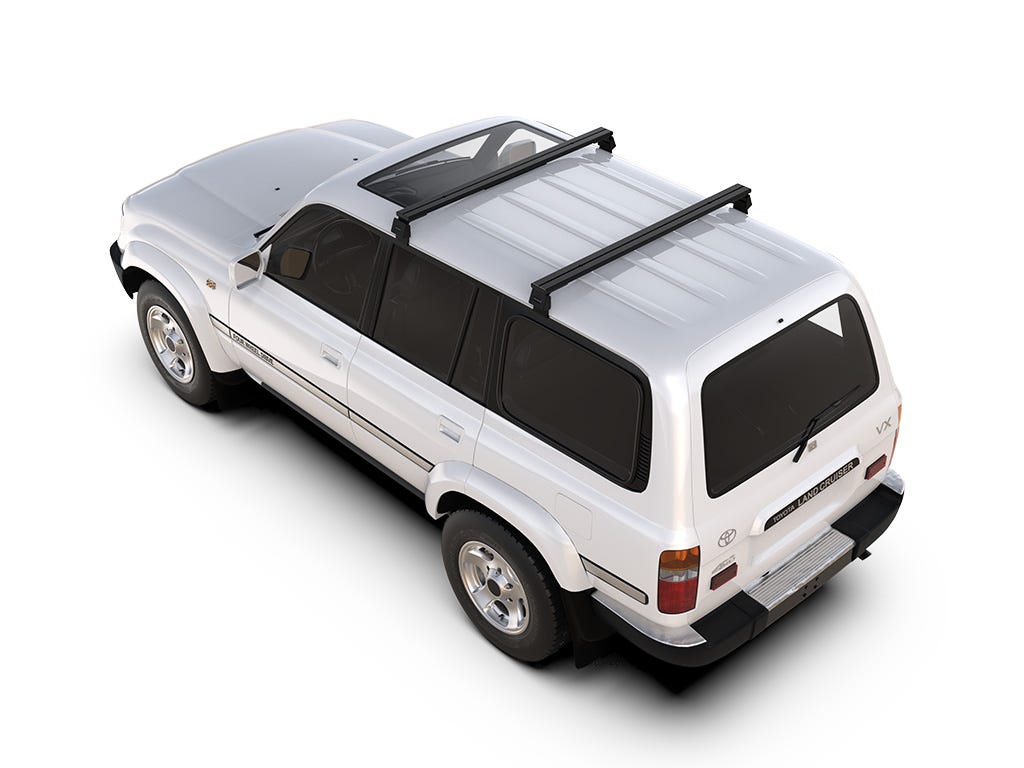

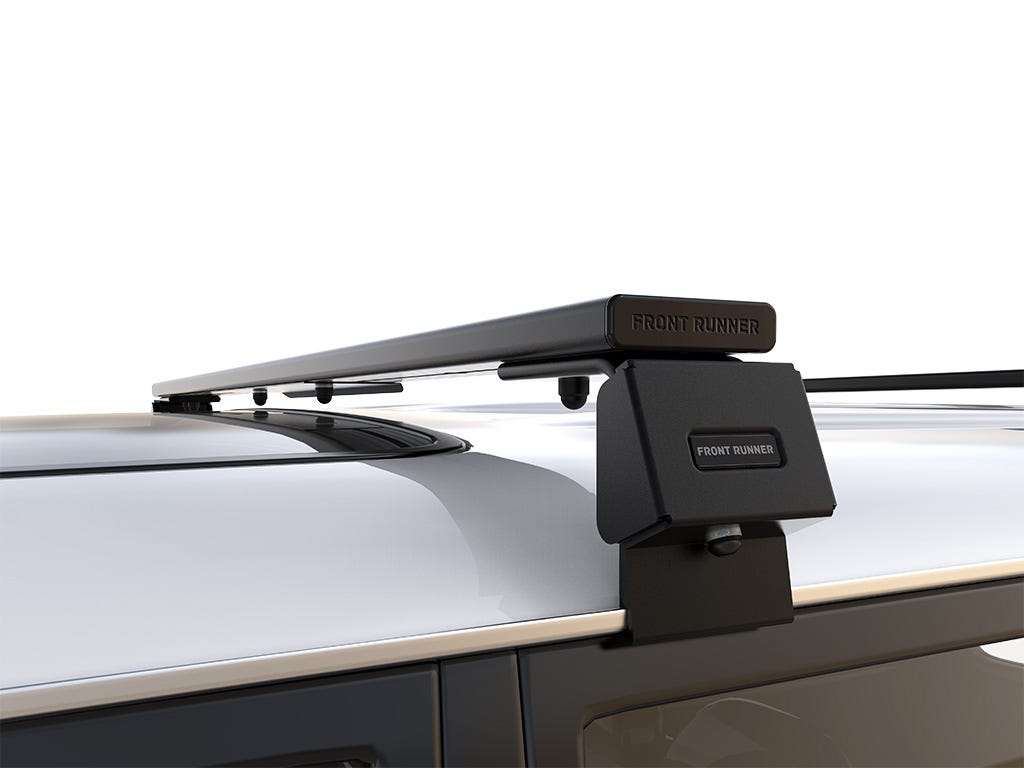

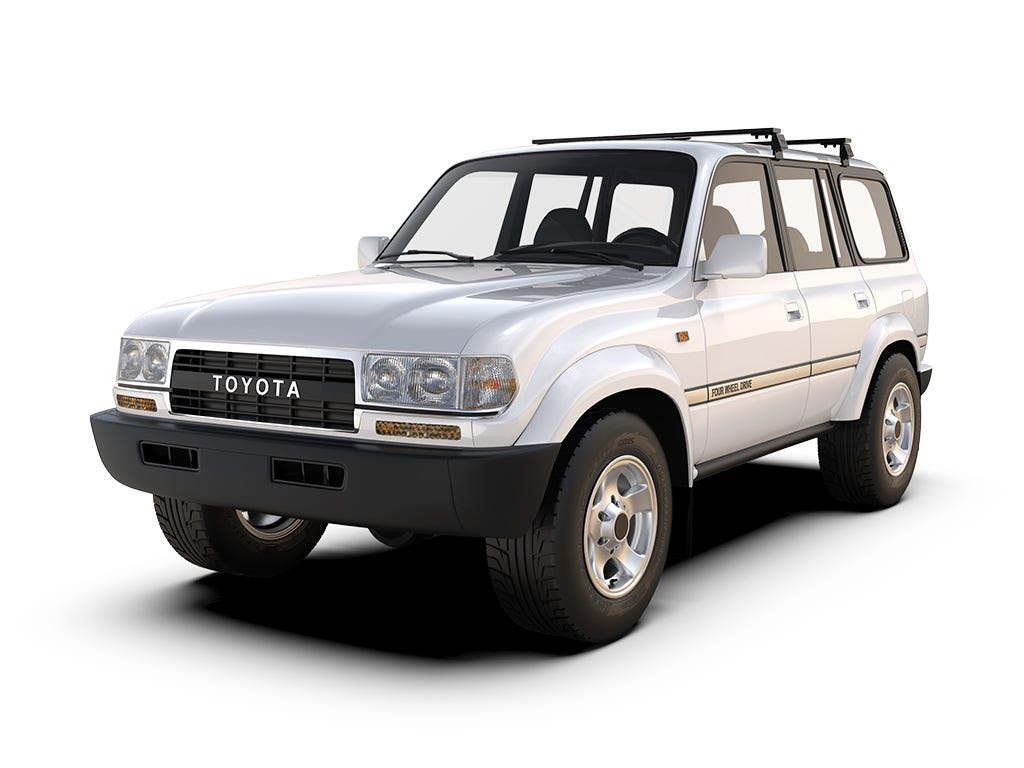

The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.
Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.
Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.
Specifications
KRTL037 - Toyota Land Cruiser 80 Load Bar Kit / Gutter Mount - by Front Runner
Consisting of:
2 x LASS101 - No 1 Leg 120mm (Pair - by Front Runner
1 x LBSK015 - Roof Load Bar Pair 1345mm(W) - by Front Runner
1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 7kg (16lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width 115mm (5")
Length 1455mm (57")
Height 180mm (7")
Shipping Weight:
Weight 8.2kg (18.1lbs)
Warranty
All FRONT RUNNER products being returned for warranty must include a copy of the invoice for the original sale. Warranty approvals will not be granted if an original invoice or copy of an invoice is not provided,
Subject to the limitations and exclusions described in this warranty, FRONT RUNNER will remedy defects in materials or workmanship by repairing or replacing, at its option, a defective product without charge for parts or labor. In addition, FRONT RUNNER may elect, at its option, not
to repair or replace a defective product but rather issue to a purchaser a refund equal to the purchase price paid for the product or a credit to be used toward the purchase of a new FRONT RUNNER product.
This warranty excludes problems caused by normal wear and tear including, but not limited to, scratches, dents, tears, or aesthetic oxidation of surfaces, natural breakdown of colors and materials over extended time and use, commercial use, accidents, or unlawful vehicle operation.
No warranty is given for defects resulting from conditions beyond FRONT RUNNER’s and Rugged Outlander’s control including, but not limited to, modifications or repairs not performed or authorized by FRONT RUNNER, misuse, overloading, or failure to assemble, install or use the product in accordance with FRONT RUNNER’s written instructions or guidelines included with the product or made available to the purchaser originally.
ROOF RACKS (LIMITED LIFETIME)
FRONT RUNNER will warranty all FRONT RUNNER Roof Racks for a LIFETIME of use by the original purchaser. The warranty will only stand if the FRONT RUNNER Roof Racks are fitted to a FRONT RUNNER Mounting System. The Roof Rack Kits must be installed in accordance with Front Runner's recommended fitment instructions. The Lifetime Warranty is effective for as long as the original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person. The components used in customized Roof Rack installations are considered accessories and are covered under the accessories warranty below.
ROOF RACK ACCESSORIES & MOUNTING SYSTEMS (3 YEARS)
FRONT RUNNER will warranty all FRONT RUNNER brand Roof Rack Accessories and Rack Mounting Systems manufactured by FRONT RUNNER for the first 3 years that an original retail purchaser owns the product. The Warranty will only stand if the accessories are fitted to a Front Runner Roof Rack. This warranty terminates if a purchaser transfers the product to any other person or if the accessories are fitted to any rack other than a FRONT RUNNER Roof Rack.
OTHER FRONT RUNNER MANUFACTURED (2 YEARS)
FRONT RUNNER will warranty all FRONT RUNNER brand fuel tanks, bumpers, tow bars, drawers and sliders manufactured by FRONT RUNNER for the first 2 years that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.
ROOF TOP TENTS & AWNINGS (2 YEARS)
FRONT RUNNER will warranty all FRONT RUNNER roof top tents and awnings for the first 2 years that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.
FRONT RUNNER BRANDED OTHER (1 Year)
FRONT RUNNER will warranty all other FRONT RUNNER branded items, not limited to but including, Expander Chairs, Cutlery, Storage Bags, Transit Bags, Flip Flop Tent, Telescopic Ladder for the first 1 year that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.
OTHER
FRONT RUNNER also sells products that complement the Front Runner product range. When those products are purchased from or through a Front Runner Reseller, FRONT RUNNER will honor ALL ORIGINAL MANUFACTURERS WARRANTIES.
DISCLAIMER OF LIABILITY
REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT OR THE ISSUANCE OF A REFUND OR CREDIT (AS DETERMINED BY FRONT RUNNER OUTFITTERS) IS A PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY. DAMAGE TO A PURCHASER’S VEHICLE, CARGO, AND/OR TO ANY OTHER
PERSON OR PROPERTY IS EXCLUDED.
THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
FRONT RUNNER OUTFITTERS ’ SOLE LIABILITY TO ANY PURCHASER IS LIMITED TO THE REMEDY SET FORTH ABOVE. IN NO EVENT WILL FRONT RUNNER OUTFITTERS BE LIABLE FOR ANY LOST PROFITS, LOST SALES, OR FOR ANY CONSEQUENTIAL, DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR PUNITIVE DAMAGES OR FOR ANY OTHER DAMAGES OF ANY KIND OR NATURE.
In some countries, product liability legislation may give you other rights beyond the scope of this warranty. Where this applies, such rights shall replace the rights and conditions stated in this warranty
