Front Runner Outfitters

KSTS003T

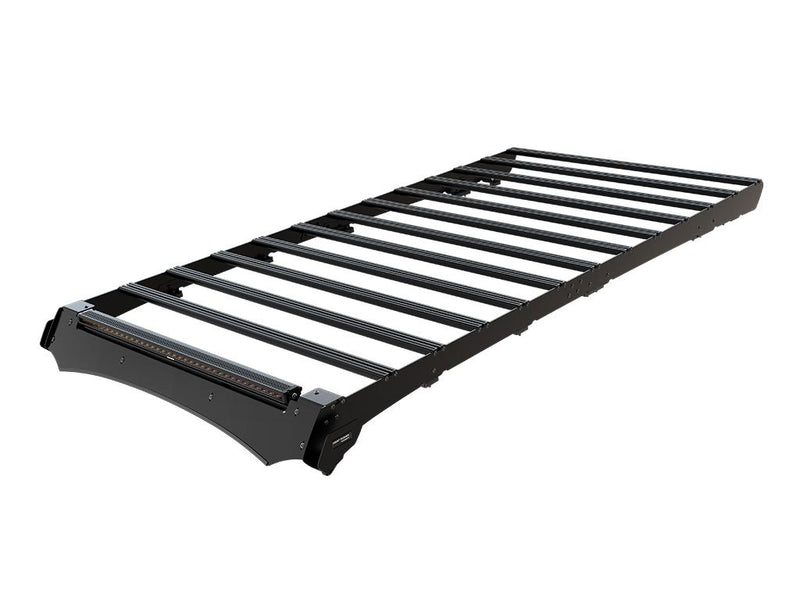

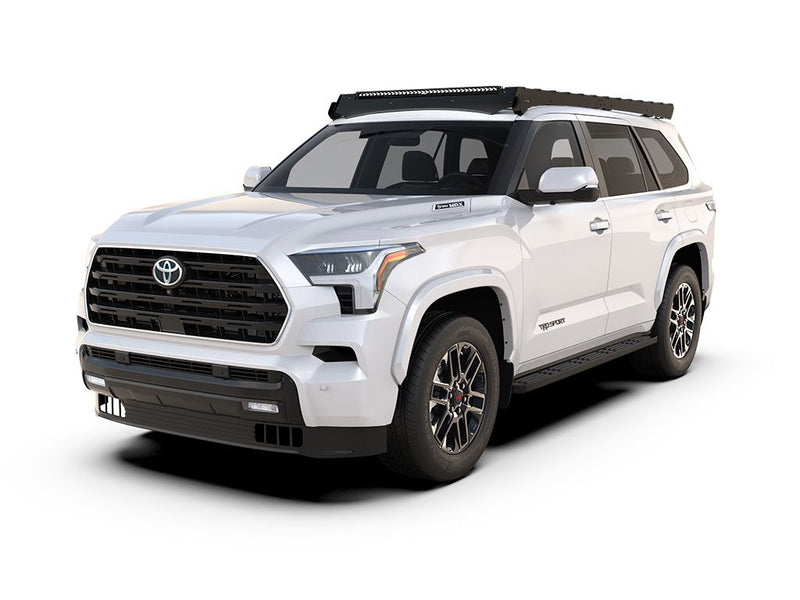

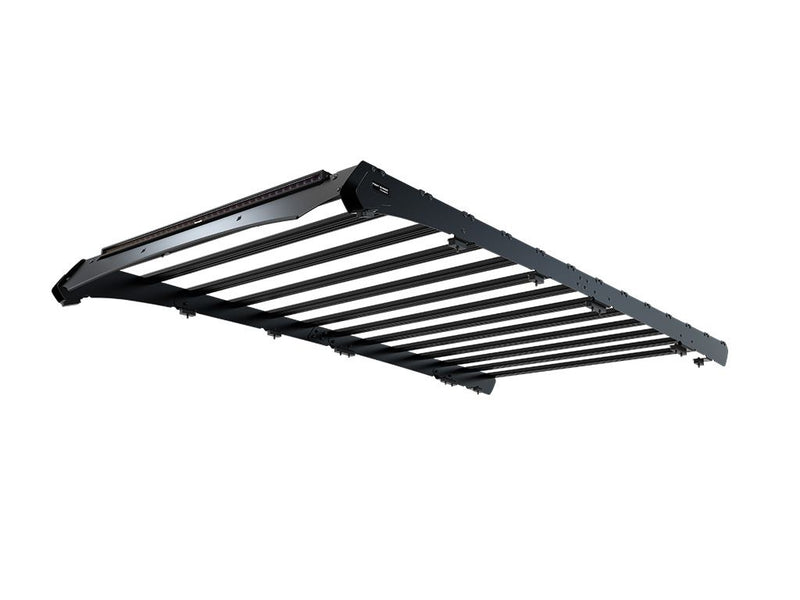

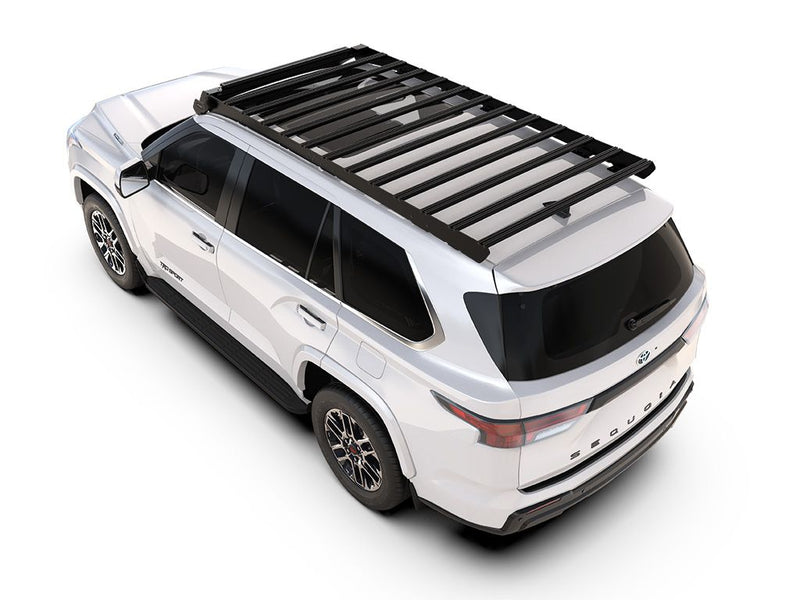

Front Runner Toyota Sequoia (2023-Current) Slimsport Roof Rack Kit / Lightbar Ready

Product Description

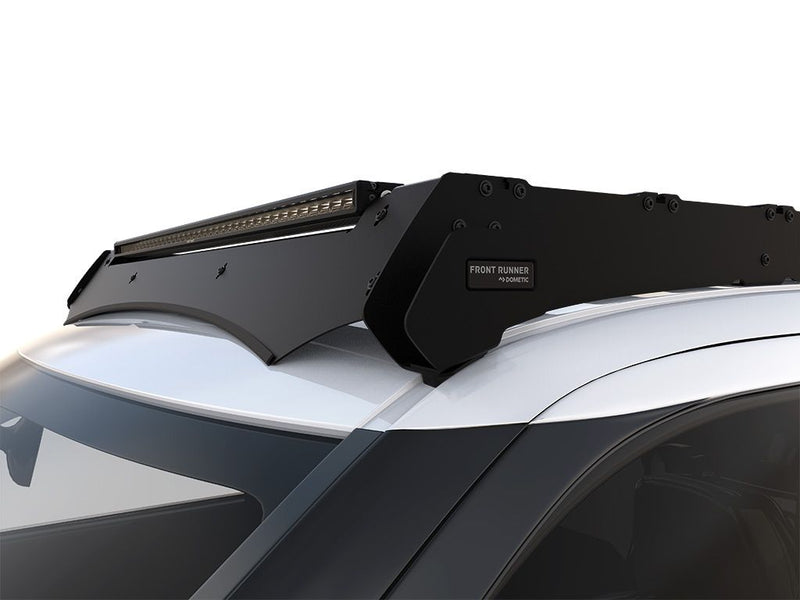

Get your Toyota Sequoia ready for adventure with this Slimsport Roof Rack Kit / Lightbar Ready. The wind fairing has a 40” cutout for mounting a lightbar and turning night into day. This sleek yet super strong rack is perfect for carrying sports gear or other cargo for your next getaway.
  • This low-profile flat deck Slimsport rack has a load-carrying area of 2666mm (105") x 1383mm (54.4").
  • The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
  • The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
  • Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket.
  • Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small for most Front Runner side mount accessories (sold separately).
  • Included in the Toyota Sequoia (2023-Current) Slimsport is a 40" cutout to allow the use of the 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately), and allows full operation of the moon roof.
  • Fitment guide and all mounting hardware included.
  • 6"/T30 Torx Allen Key for Slimsport Rack is required for installation.
  • The middle and rear mounting feet utilize the factory fixing points. Front mounting feet do not require drilling when installed with the included No Drill kit, but hardware is included for the drill & bolt option (recommended).
  • Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.
  • All Front Runner Racks are backed by a Limited Lifetime Warranty*

Installation Instructions for KSTS001

Installation Instructions for RRAC286





Specifications

KSTS003T - Toyota Sequoia(2023-Cur) Slimsport Roof Rack Kit Lightbar Ready

Consisting of:
1x KSTS001 - Toyota Sequoia (2023 - Current) Slimsport Tray
1x RRAC286 - Toyota Sequoia(23-cur)Slimsport rack 40" lightbar wind faring

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Assembled Rack Kit Dimensions:
2666mm (105“) L x 1383mm (54.4“) W x 196mm (7.7“) H

Approximate Installed Weight: 45.45kg (100.2lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

Shipping Dimensions:
Width: 270mm (11")
Length: 1700mm (67")
Height: 325mm (13")

Shipping Weight:
Weight: 47kg (103lbs)

Warranty

All FRONT RUNNER products being returned for warranty must include a copy of the invoice for the original sale. Warranty approvals will not be granted if an original invoice or copy of an invoice is not provided,

Subject to the limitations and exclusions described in this warranty, FRONT RUNNER will remedy defects in materials or workmanship by repairing or replacing, at its option, a defective product without charge for parts or labor. In addition, FRONT RUNNER may elect, at its option, not
to repair or replace a defective product but rather issue to a purchaser a refund equal to the purchase price paid for the product or a credit to be used toward the purchase of a new FRONT RUNNER product.

This warranty excludes problems caused by normal wear and tear including, but not limited to, scratches, dents, tears, or aesthetic oxidation of surfaces, natural breakdown of colors and materials over extended time and use, commercial use, accidents, or unlawful vehicle operation.

No warranty is given for defects resulting from conditions beyond FRONT RUNNER’s and Rugged Outlander’s control including, but not limited to, modifications or repairs not performed or authorized by FRONT RUNNER, misuse, overloading, or failure to assemble, install or use the product in accordance with FRONT RUNNER’s written instructions or guidelines included with the product or made available to the purchaser originally.

ROOF RACKS (LIMITED LIFETIME)

FRONT RUNNER will warranty all FRONT RUNNER Roof Racks for a LIFETIME of use by the original purchaser. The warranty will only stand if the FRONT RUNNER Roof Racks are fitted to a FRONT RUNNER Mounting System. The Roof Rack Kits must be installed in accordance with Front Runner's recommended fitment instructions. The Lifetime Warranty is effective for as long as the original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person. The components used in customized Roof Rack installations are considered accessories and are covered under the accessories warranty below.

ROOF RACK ACCESSORIES & MOUNTING SYSTEMS (3 YEARS)

FRONT RUNNER will warranty all FRONT RUNNER brand Roof Rack Accessories and Rack Mounting Systems manufactured by FRONT RUNNER for the first 3 years that an original retail purchaser owns the product. The Warranty will only stand if the accessories are fitted to a Front Runner Roof Rack. This warranty terminates if a purchaser transfers the product to any other person or if the accessories are fitted to any rack other than a FRONT RUNNER Roof Rack.

OTHER FRONT RUNNER MANUFACTURED (2 YEARS)

FRONT RUNNER will warranty all FRONT RUNNER brand fuel tanks, bumpers, tow bars, drawers and sliders manufactured by FRONT RUNNER for the first 2 years that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

ROOF TOP TENTS & AWNINGS (2 YEARS)

FRONT RUNNER will warranty all FRONT RUNNER roof top tents and awnings for the first 2 years that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

FRONT RUNNER BRANDED OTHER (1 Year)

FRONT RUNNER will warranty all other FRONT RUNNER branded items, not limited to but including, Expander Chairs, Cutlery, Storage Bags, Transit Bags, Flip Flop Tent, Telescopic Ladder for the first 1 year that an original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

OTHER

FRONT RUNNER also sells products that complement the Front Runner product range. When those products are purchased from or through a Front Runner Reseller, FRONT RUNNER will honor ALL ORIGINAL MANUFACTURERS WARRANTIES.

DISCLAIMER OF LIABILITY

REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT OR THE ISSUANCE OF A REFUND OR CREDIT (AS DETERMINED BY FRONT RUNNER OUTFITTERS) IS A PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY. DAMAGE TO A PURCHASER’S VEHICLE, CARGO, AND/OR TO ANY OTHER
PERSON OR PROPERTY IS EXCLUDED.

THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

FRONT RUNNER OUTFITTERS ’ SOLE LIABILITY TO ANY PURCHASER IS LIMITED TO THE REMEDY SET FORTH ABOVE. IN NO EVENT WILL FRONT RUNNER OUTFITTERS BE LIABLE FOR ANY LOST PROFITS, LOST SALES, OR FOR ANY CONSEQUENTIAL, DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR PUNITIVE DAMAGES OR FOR ANY OTHER DAMAGES OF ANY KIND OR NATURE.

In some countries, product liability legislation may give you other rights beyond the scope of this warranty. Where this applies, such rights shall replace the rights and conditions stated in this warranty.
