Up Down Air

228-1819

Up Down Air 4 Tire Inflation System - Jeep Gladiator JT Engine Bay Passenger Side

Product Description

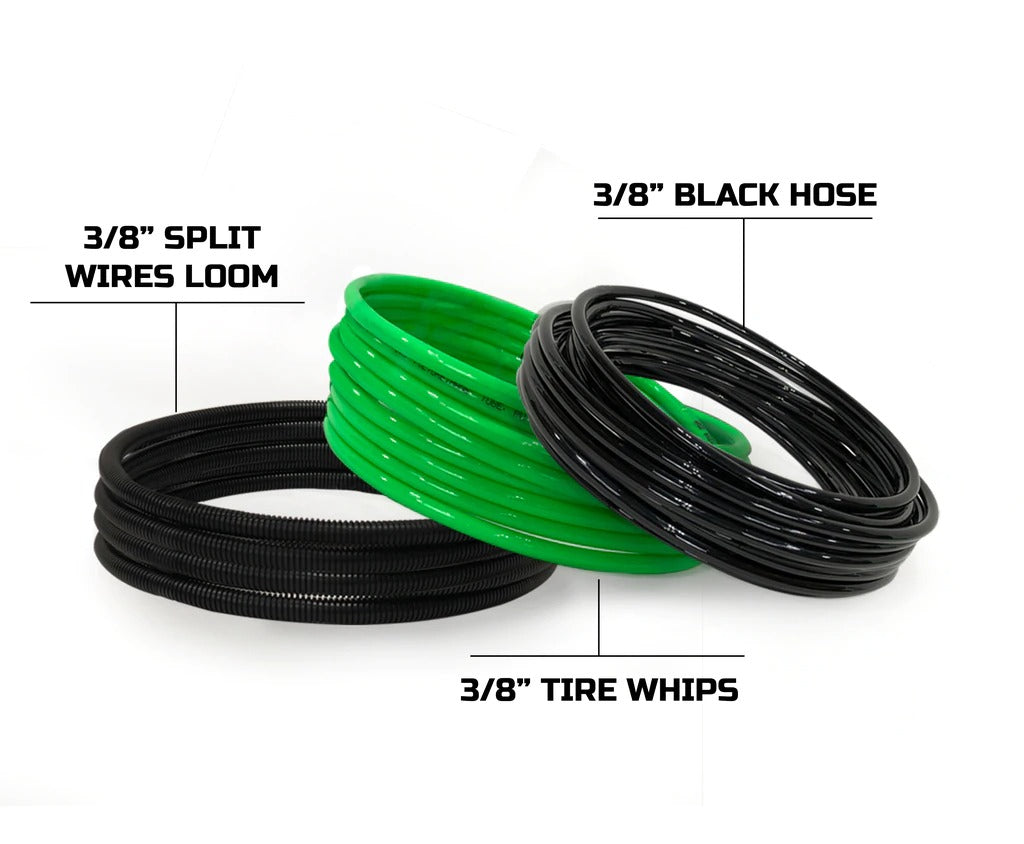

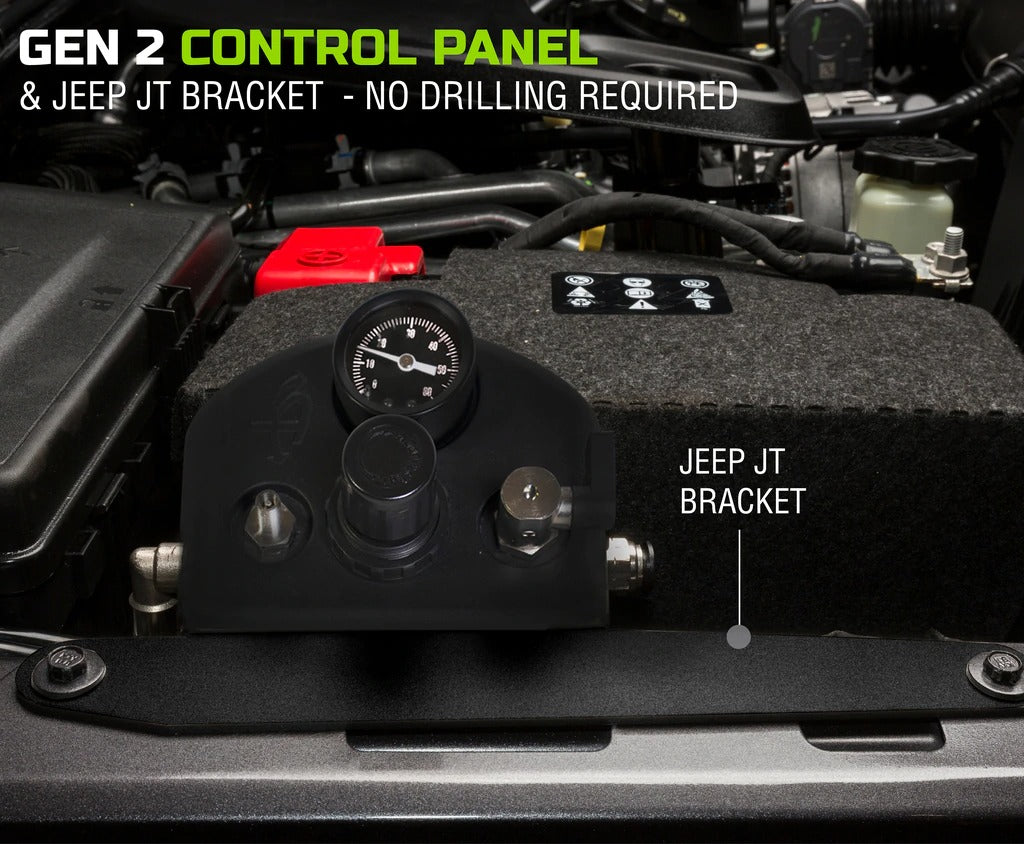

Introducing theGen2 Air Delivery System (ADS) Jeep Gladiator JT engine mount that allows you to inflate or deflate all four tires simultaneously which makes managing tire air pressure quick and easy. This system can manage air through an on-board permanent air source with dedicated air inlet or through portable air pump that can attach through an external Schrader valve. Each kit comes complete with DOT approved 3/8”air line throughout the system, whips with quick connect chucks with the Betty Bar feature, ADS control box with air regulator and 90-degree Schrader valves. This Gen2 system is designed specifically for your application with pre-cut hoses and quick connect fittings to make the installation fast and easy.

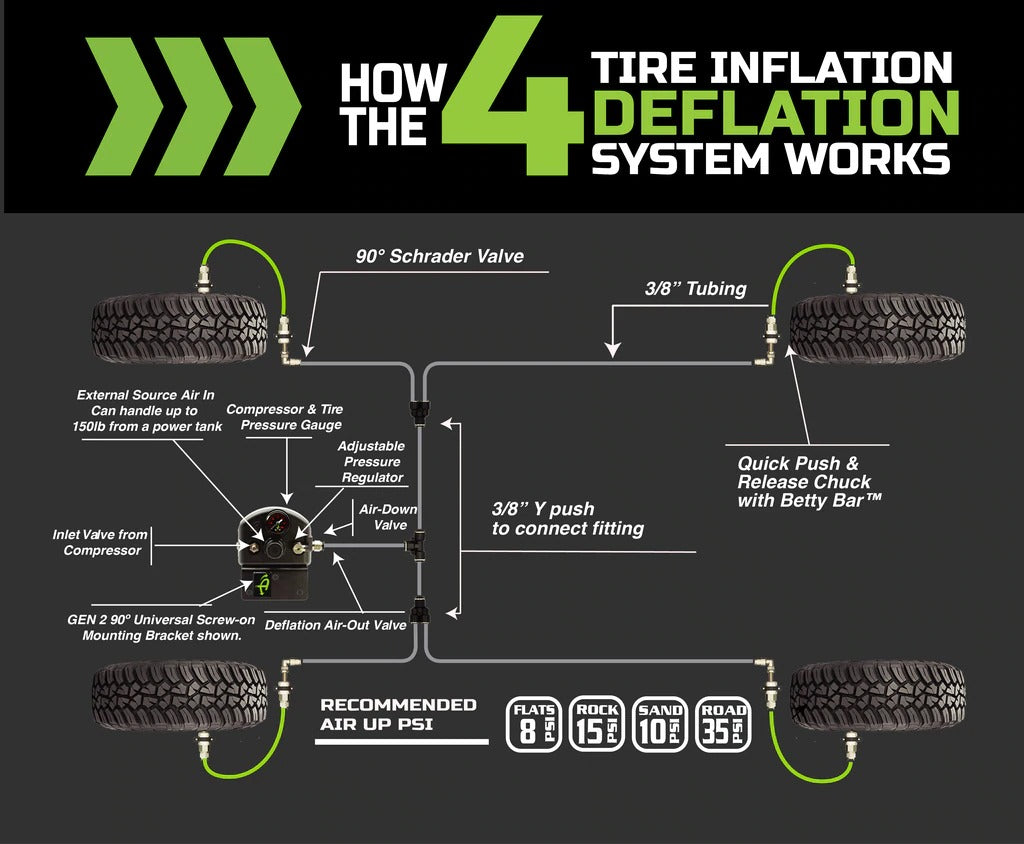

• Air It Up® 4 Tire Inflation System can deflate, and automatically inflate or equalize 4 tires at the same time.

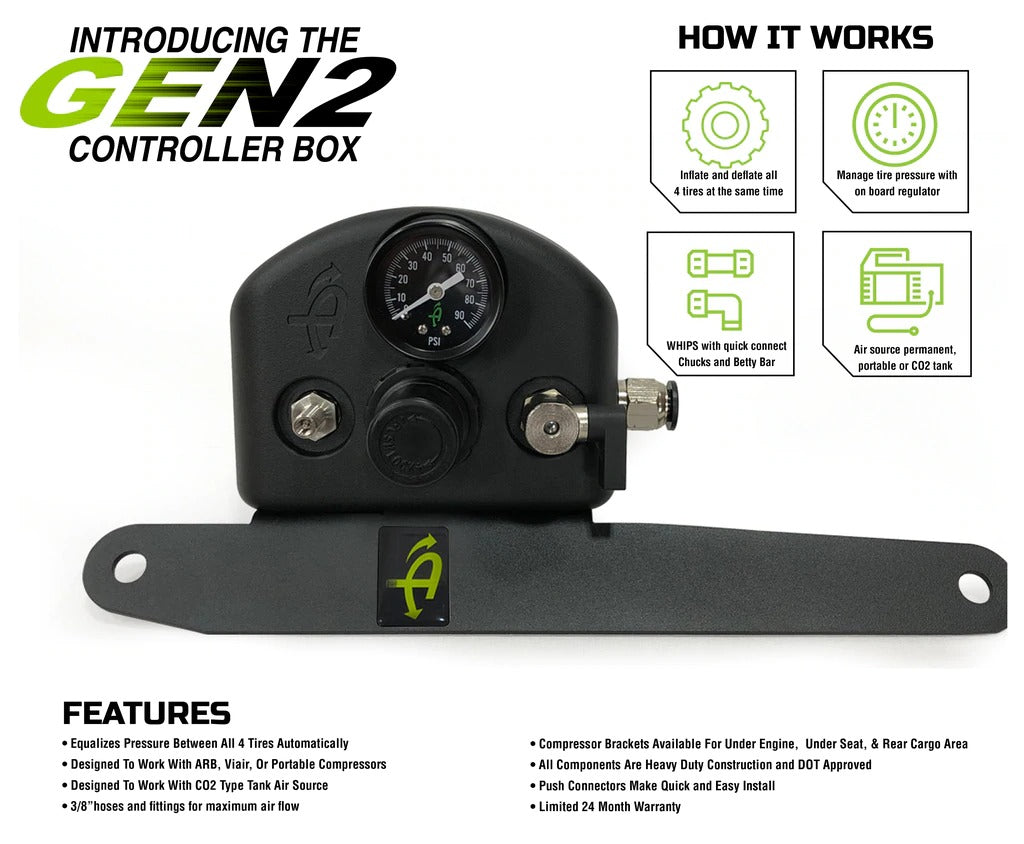

• Includes ADS Controller Box, 90 psi Pressure Regulator, 150 psi Blow-off Valve.
• ADS Controller features 2 inlet valves with permanent or portable air source.

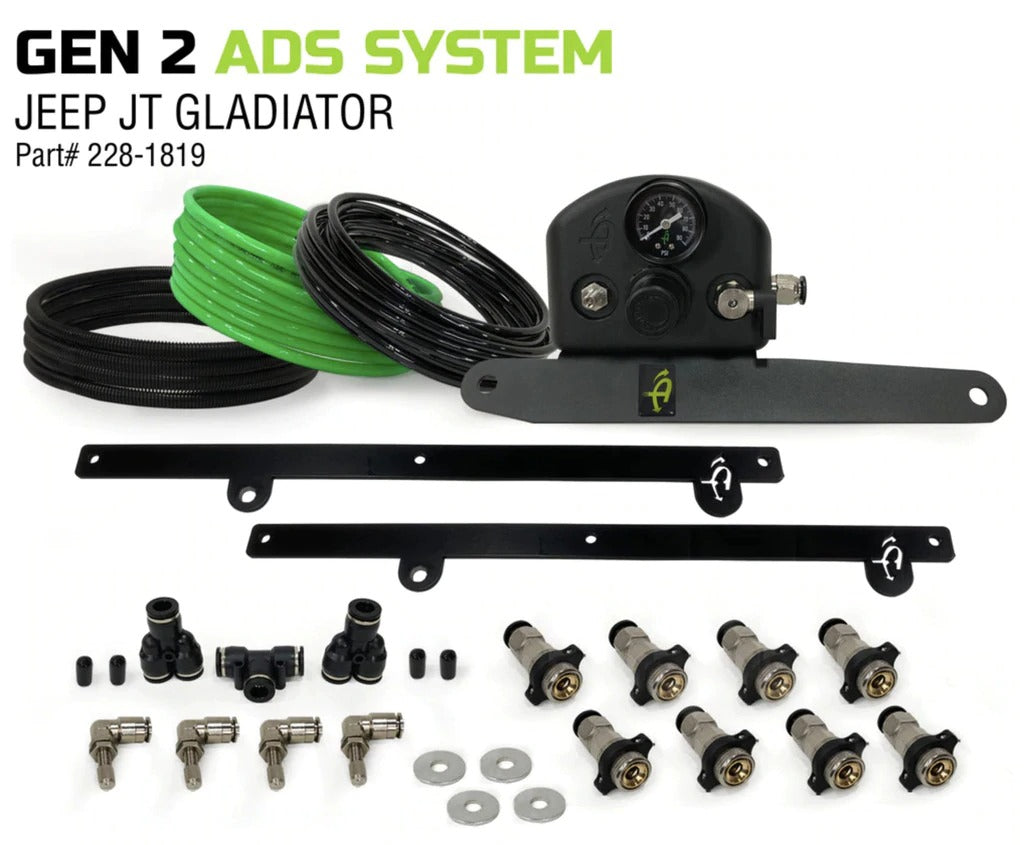

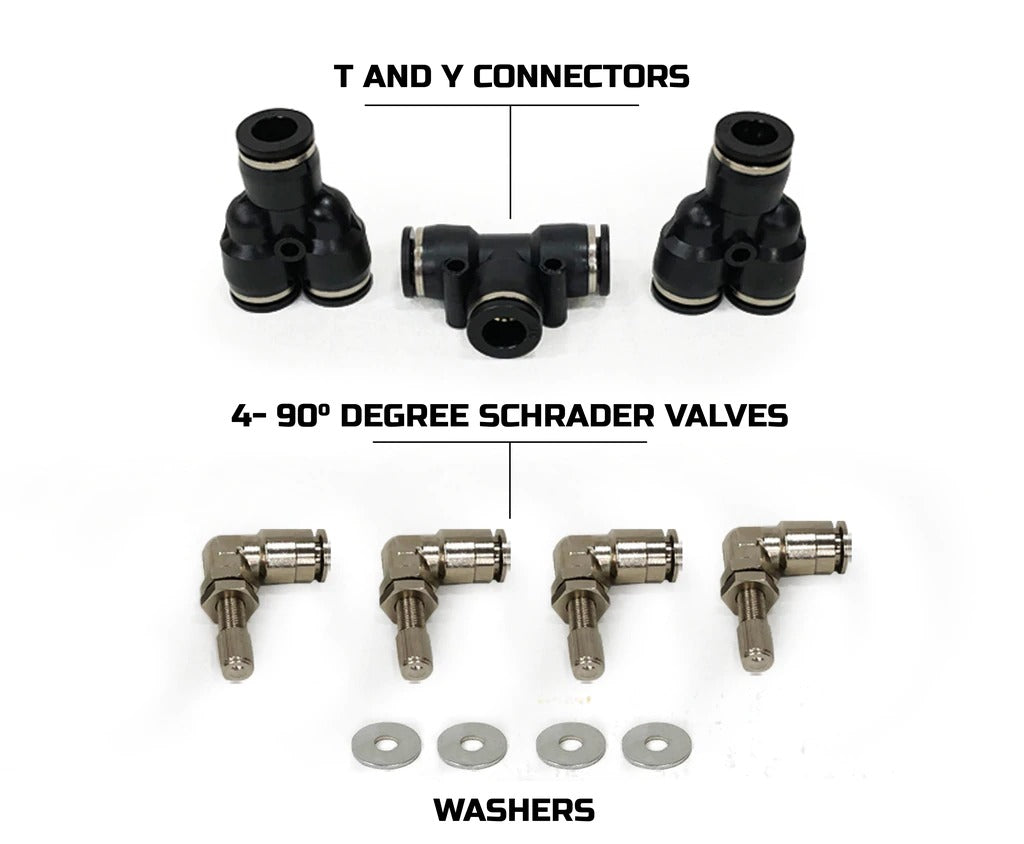

• Includes Pre-cut Hoses, Push To Connect Fittings, and everything that is needed for easy installation.

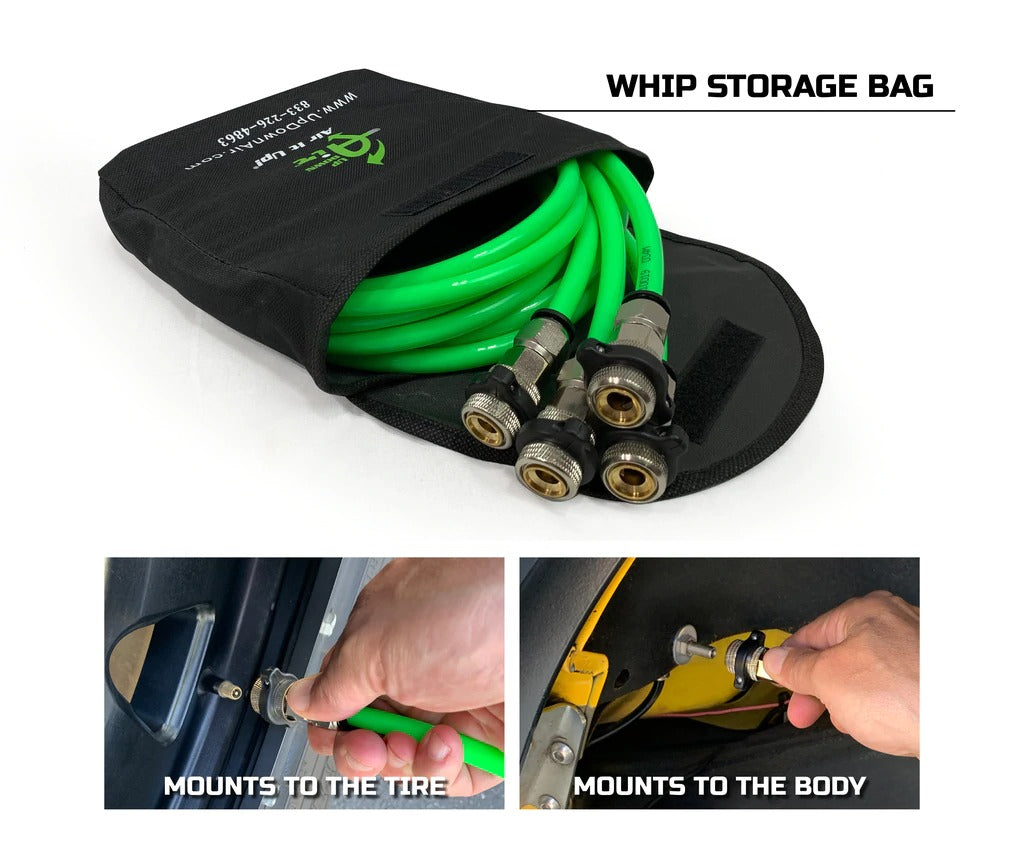

• Includes 8 Quick Connect Chucks with the easy to use Betty Bar™ feature and 4 Green Tire Connect Whips with a Storage Bag
• Heavy Duty Construction with DOT approved hoses and fittings.
• Designed to work with the EGOI 2 Air Compressor, ARB and Viair Compressors
• Complete line of Air Compressor Bracket Kits Available for Under Engine, Under Seat, & Rear Cargo Area Mounting Solutions.



Specifications

Weight:   5.00 LBS
Width:     5.00 (in)
Height:   15.00 (in)

Warranty

Overland Vehicle Systems Up Down Air Products are produced to the highest manufacturing standards and are covered by a limited Five-Year warranty that protects the original purchaser against any defects in materials and workmanship under normal use. If upon determination by Overland Vehicle Systems that the Up Down Air Product is defective,
Overland Vehicle Systems will repair or replace without charge, with an equivalent tent to the original purchaser according to the instructions supplied with the Up Down Air Products, and not damaged due to abuse, misuse or negligence.
This warranty will not cover any labor charges incurred in installation, removal, replacement or repair, transportation cost or any consequential damages, which might be caused by the product.

Rugged Outlander and Overland Vehicle Systems shall not be liable in case of;
• Improper installation or modification of original product.
• Damages resulting from abuse
• Improper installation
• Any commercial application


If the original purchaser finds a defect in material or workmanship, please contact Overland Vehicle Systems Warranty Service, 9115 Dice Road Suite 14, Santa Fe Springs, CA 90670. Please include proof of purchase or sales receipt. The law in some states may expand or modify this warranty. This warranty supersedes all other warranties, expressed or implied.
